Overview - Lock Carrier

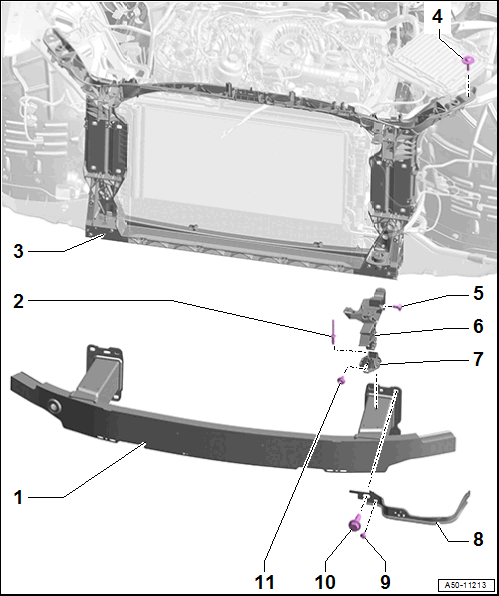

Fig 1: Overview - Lock Carrier

Courtesy of AUDI OF AMERICA, LLC

Impact Member
- Overview. Refer to OVERVIEW - IMPACT MEMBER .
Pop Rivet
- Quantity: 3
Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
- Quantity: 2
Bolt
- 5 Nm
- Quantity: 2
Bracket with Spring Element
- Removing and Installing. Refer to BRACKET WITH SPRING ELEMENT, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT, ADJUSTING USING SPRING ELEMENT .
Mount
- For bracket with spring element
- Removing and Installing. Refer to BRACKET WITH SPRING ELEMENT MOUNT, REMOVING AND INSTALLING .
Connecting Brace
- Overview. Refer to OVERVIEW - IMPACT MEMBER .
Bolt
- Tightening specification OVERVIEW - IMPACT MEMBER
Bolt
- Tightening specification OVERVIEW - IMPACT MEMBER
Bolt
- 8 Nm
