Overview - Impact Member

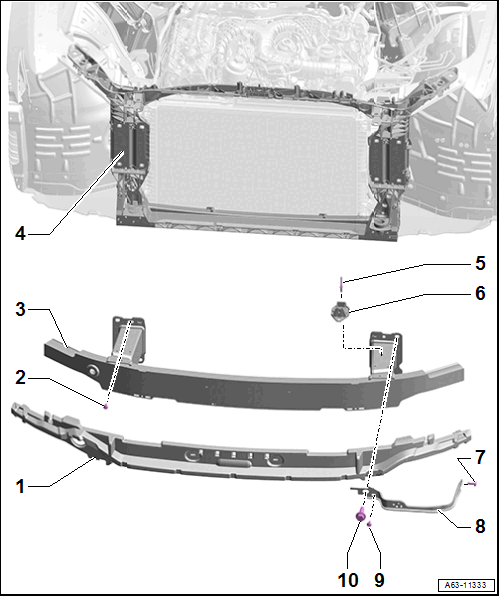

Fig 1: Overview - Impact Member

Courtesy of AUDI OF AMERICA, LLC

Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
Bolt
- 5 Nm
Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
Lock Carrier
- Overview. Refer to OVERVIEW - LOCK CARRIER .
Pop Rivet
- Quantity: 3
Mount
- For bracket with spring element
- Overview. Refer to OVERVIEW - LOCK CARRIER .
Bolt
- 8 Nm
Connecting Brace
- Removing and Installing. Refer to CONNECTING BRACE, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Bolt
- Quantity: 4
- 55 Nm
