Bracket With Spring Element Mount, Removing And Installing

Special tools and workshop equipment required

• Pop Rivet Nut Pliers:VAS5072A
• Drill
• Pop rivets. Refer to the Parts Information.

Removing

-- Remove the bracket with spring element. Refer to BRACKET WITH SPRING ELEMENT, REMOVING AND INSTALLING .

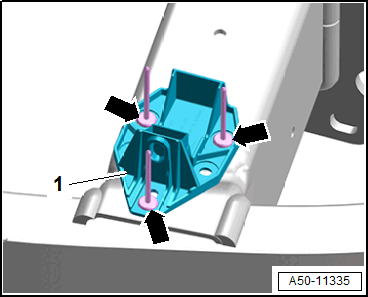

-- Drill out the rivet heads -arrows-, drive out the rivet shafts and remove any rivet remnants.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -1- for the bracket with spring element.

Installing

Install in reverse order of removal and note the following:

-- Rivet the mount with the rivets.

-- Push the bracket with spring element completely downward and tighten the bolt.

-- Adjust the spring element. Refer to HEIGHT, ADJUSTING USING SPRING ELEMENT .

Tightening Specifications

• Refer to OVERVIEW - LOCK CARRIER
