SUBFRAME, Lowering

WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Steering wheel locking device, commercially available

Procedure

Vehicles with High-Voltage System:

CAUTION:

There is a risk of fatal injury due to high voltage.

Electrocution by direct contact or electric arc can cause severe bodily injury or fatal injury.

- Have an Audi high-voltage technician (HVT) or an Audi high-voltage expert (HVE) de-energize the high-voltage system.

-- De-energize the high-voltage system. Refer to the appropriate Service Information. .

Continuation for All Vehicles:

-- Turn the steering wheel in the straight position.

-- Switch the ignition off and open the driver door so the steering wheel lock engages.

-- Use the steering wheel locking device -2- to lock the steering wheel -1- when the wheels are in straight-ahead position.

Courtesy of AUDI

LHD vehicles:

Courtesy of AUDI

-- Remove the buttons/nuts -arrows-.

Continuation for All Vehicles:

-- Free up the carpet in the area of the universal joint and push it slightly rearward.

-- Remove the bolt -1- and remove the universal joint -2- from the steering gear -arrow-.

Courtesy of AUDI

-- Remove the noise insulations. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the front tunnel underbody trim panels. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

Vehicles with High-Voltage System:

Courtesy of AUDI

-- Remove the bolt -1- and the nuts -3-.

-- Tie up the bracket -2- with the High-Voltage Heater (PTC) -Z115- to the side.

-- Remove the double bolts -arrows- on the bracket for the exhaust pipe.

Courtesy of AUDI

Continuation for All Vehicles:

Courtesy of AUDI

-- Remove the bolts -arrows- on the exhaust system bracket.

-- Remove the bolts -1- for the pendulum support.

Courtesy of AUDI

-- Remove the left and right nuts -1- from the coupling rod -3- to do so counterhold with a four-point socket on the threaded pin.

Courtesy of AUDI

-- Remove the left and right coupling rod from the stabilizer bar -2-.

Vehicles with Level Control System Sensor:

Courtesy of AUDI

-- Disconnect the left and right connector -1- from the front level control system sensor.

Vehicles with TDI Engine:

Courtesy of AUDI

-- Disconnect the connector -arrow- from the Heater Support Pump -V488-.

Continuation for All Vehicles:

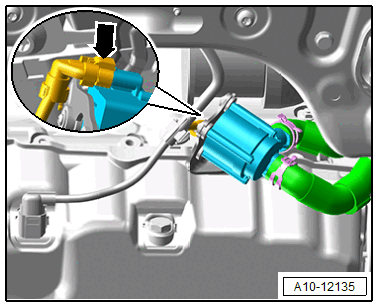

Fig 1: Identifying Connector From Oil Level Thermal Sensor

Courtesy of AUDI

-- Disconnect the connector for the Oil Level Thermal Sensor -G266- -arrow- and free up the wire from the subframe. There are different versions depending on the engine.

-- Secure the subframe. Refer to SUBFRAME, SECURING .

-- Vehicles with starter generator: unclip the right wiring guide -1- on the subframe to do so release the catches -arrows-.

Courtesy of AUDI

-- Slightly lower the subframe with the Engine and Gearbox Jack:VAS 6931 -item 1-.

Fig 2: Identifying Engine/Gearbox Jack

Courtesy of AUDI

TIP:

Pay attention that the wires for the power steering and oil level/oil temperature sensor are not over-stretched.

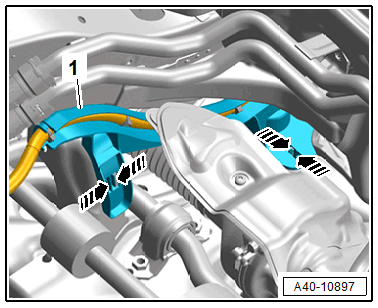

-- Free up the left cable guide from the subframe by removing the expanding clip -arrow-.

Courtesy of AUDI

-- Unclip the bracket -arrows- on the steering gear -2- and free up the wires -1- the rest of the routing.

Courtesy of AUDI

-- Disconnect the connectors -1 and 2- from the steering gear.

Courtesy of AUDI

-- Lower the subframe a maximum of 100 mm.

Installing

Install in the reverse order of removal while noting the following:

Make sure that the sealing surface is clean.
Coat the seal -1- on the steering gear with lubricant such as soft soap before installing.
Make sure the seal is seated correctly: the ridge of the steering gear housing -2- must close all around -arrows-.

Courtesy of AUDI
After attaching the steering gear to the drive axle, make sure that the seal on the steering gear rests on the mounting plate without kinks and seals the opening to the footwell correctly. Water leak and/or noises may be the result.

CAUTION:

Improper handling increases the risk of damaging the threads in the vehicle body.

- Never use an impact wrench to loosen or tighten.

- Position the bolts by hand only and screw in the first threads.

-- Removing the Locating Pin:T10486/1 . Refer to Removing the .

-- Tighten the universal joint. Refer to STEERING COLUMN, REMOVING AND INSTALLING .

Vehicles with High-Voltage System:

-- Install the High-Voltage Heater (PTC) -Z115- bracket. Refer to HIGH-VOLTAGE HEATER (PTC) -Z115- (WITH HIGH-VOLTAGE HEATER (PTC) CONTROL MODULE -J848-), REMOVING AND INSTALLING .

CAUTION:

There is a risk of fatal injury due to high voltage.

Electrocution by direct contact or electric arc can cause severe bodily injury or fatal injury.

- Have an Audi high-voltage technician or an Audi high-voltage expert bring the high-voltage system back into service.

-- Re-energize the high-voltage system. Refer to the appropriate Service Information. .

Continuation for all vehicles:

-- Overview table for when an axle alignment is needed. Refer to NEED FOR AXLE ALIGNMENT, EVALUATING .

Tightening Specifications

Refer to OVERVIEW - SUBFRAME
Refer to OVERVIEW - ASSEMBLY MOUNTS - 2.0L DSNA , ASSEMBLY MOUNTS - Servicing 2.0L DSPA .
Refer to OVERVIEW - MUFFLER - 2.0L DSNA , OVERVIEW - MUFFLER - Servicing 2.0L DSPA .
Refer to OVERVIEW - NOISE INSULATION .
Refer to OVERVIEW - UNDERBODY TRIM PANELS .
Refer to OVERVIEW - FOOTREST AND CARPET .
