Overview - Footrest And Carpet

The overview shows the left side as an example.

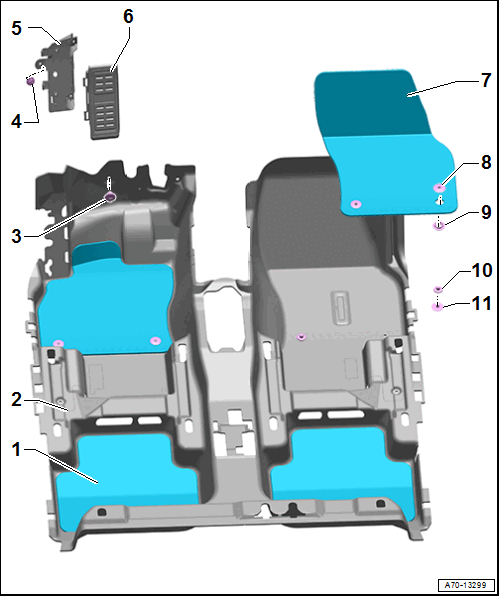

Fig 1: Exploded View Of Footrest And Carpet

Courtesy of AUDI

1. Rear Floor Mat
   • Quantity: 2
2. Carpet
   • One piece
   • Refer to CARPET, REMOVING AND INSTALLING
3. Nut/Button
   • Quantity: 2
   • Nut: 2 Nm
   • Button; push until stop
4. Nut
   • Quantity: 3
   • 2 Nm
5. Footrest Bracket
   • Refer to FOOTREST, REMOVING AND INSTALLING
6. Footrest
   • Must engage completely in the bracket
   • Refer to FOOTREST, REMOVING AND INSTALLING
7. Front Floor Mat
   • Quantity: 2
8. Floor Mat Bracket Cap
   • Quantity: 2
   • Unclip using the Pry Lever:80-200
   • Press into the bracket until it clicks into place
9. Floor Mat Bracket
   • Quantity: 2
   • Insert from below into the floor mat
10. Floor Mat Bracket Cap
    • Quantity: 2
    • Unclip using the Pry Lever:80-200
    • Press into the bracket until it clicks into place
11. Floor Mat Bracket
    • Quantity: 2
    • Insert from below into the carpet

Tightening Specification - Bracket for Control Modules

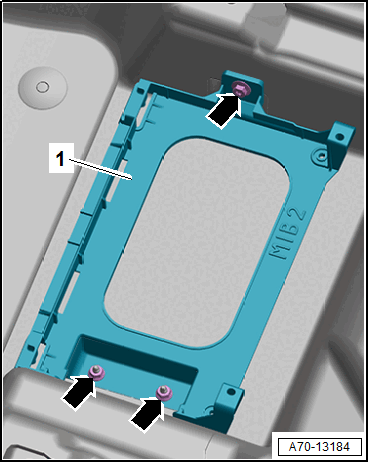

Fig 2: Bracket for Control Modules

Courtesy of AUDI

-- Tighten the nuts and bolts -arrows- to 3 Nm.
