Glass Panel, Adjusting, Q3

To achieve the best possible exterior optical characteristics, make sure that the adjustment on left and right sides is performed as evenly (symmetrically) as possible.

-- Check the glass panel adjustment using a depth gauge, for example. Refer to ADJUSTMENT DIMENSION, Q3 .

-- Close the sliding sunroof.

-- Remove the left and right inner seal on the side -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Front Glass Panel:

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the left and right bolts -arrows-.

-- Adjust the glass panel -1- and tighten the screws.

Rear Glass Panel:

Courtesy of AUDI OF AMERICA, LLC

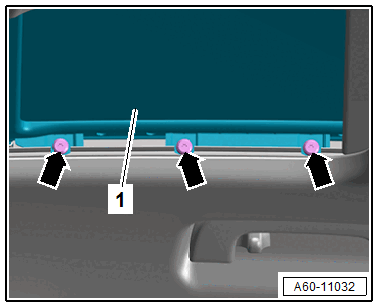

-- Loosen the bolts -arrows- on the rear of the glass panel -1-.

-- Loosen the left and right bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the glass panel -1- and tighten the screws.

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .

Tightening Specifications
