Overview - Sliding Sunroof, Q3

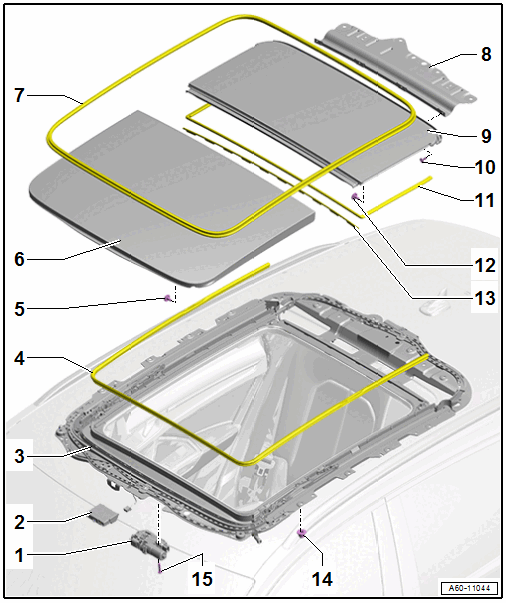

Fig 1: Exploded View Of Sliding Sunroof Q3

Courtesy of AUDI OF AMERICA, LLC

1. Sunroof Motor -V1-
   • Removing and Installing. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING .
   • Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
2. Sunroof Control Module -J245-
   • Removing and Installing. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING .
3. Sunroof Frame
   • Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, Q3 .
   • Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
4. Seal
   • Inner
   • Attached from the inside onto the sunroof frame
5. Bolt
   • Quantity: 8
   • Replace after removing
   • 7 Nm
6. Glass Panel
   • Front
   • Removing and Installing. Refer to FRONT GLASS PANEL, REMOVING AND INSTALLING, Q3 .
   • Adjusting. Refer to GLASS PANEL, ADJUSTING, Q3 .
   • Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
   • Emergency Opening. Refer to EMERGENCY OPENING .
7. Seal
   • For roof opening
   • Replace after removing
   • Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, Q3 .
   • Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
8. Reinforcement Plate
9. Glass Panel
   • Rear
   • Removing and Installing. Refer to REAR GLASS PANEL, REMOVING AND INSTALLING, Q3 .
   • Adjusting. Refer to GLASS PANEL, ADJUSTING, Q3 .
   • Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
10. Bolt
    • Quantity: 4
    • Replace after removing
    • 3 Nm
11. Seal
    • For the rear glass panel
    • Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, Q3 .
12. Bolt
    • Quantity: 6
    • Self-locking
    • Replace after removing
    • 7 Nm
13. Seal
    • For the front glass panel
    • Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, Q3 .
14. Nut
    • Quantity: 16
    • Tightening Specification. Refer to Fig 2.
15. Bolt
    • Quantity: 2
    • Replace after removing
    • 4 Nm

Sunroof frame - tightening specification and sequence

Fig 2: Sunroof Frame - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts to 8 Nm in the sequence -1 to 8-.
