Adjustment Dimension, Q3

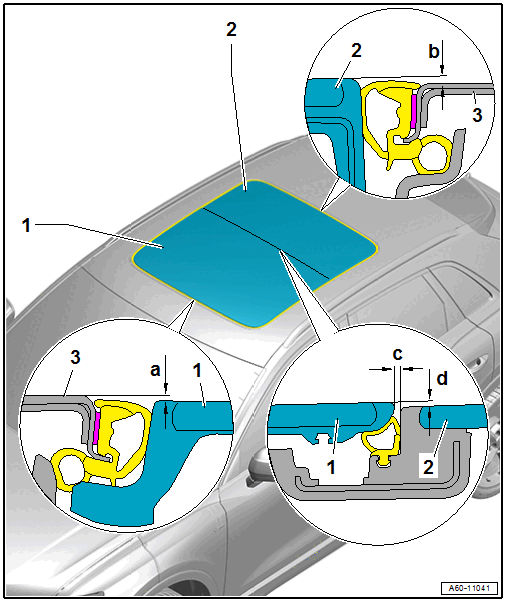

GWWA60-11041Courtesy of AUDI OF AMERICA, LLC
  1. Front Glass Panel
    • Dimension -a- = 1.3 mm
    • Dimension -c- = 1.2 mm
    • Dimension -d- = 1.0 mm
  2. Rear Glass Panel
    • Dimension -b- = 0.8 mm
    • Dimension -c- = 1.2 mm
    • Dimension -d- = 1.0 mm
  3. Roof
