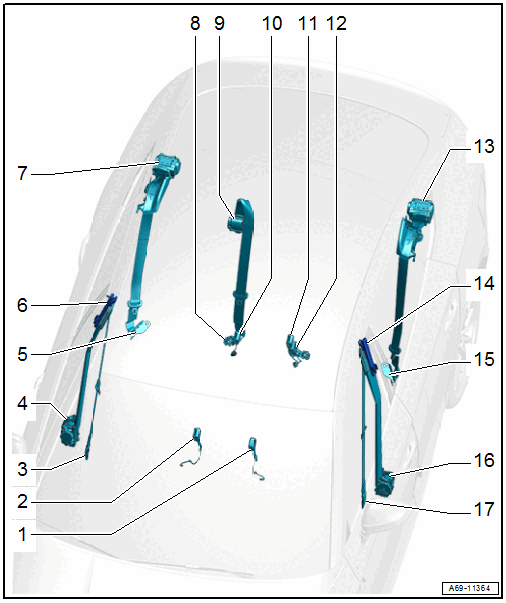

Component Location Overview - Seat Belts And Mounting Points, A5 SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- Front Seat Belt Latch
- With Driver Seat Belt Switch -E24-
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
- Front Seat Belt Latch
- With Front Passenger Seat Belt Switch -E25-
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
- Front Belt End Fitting
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 SPORTBACK .
- Automatic Belt Retractor
- For the front three-point seat belt
- With:
- Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Front Passenger Belt Force Limiter -G552-
- Equipment versions with electric seat belt tensioner: Right Front Seat Belt Tensioner Control Module -J855-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 SPORTBACK .
- Rear Belt End Fitting
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT, A5 COUPE/SPORTBACK .
- Belt Height Adjuster/Front Seat Belt Guide
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 SPORTBACK .
- Automatic Belt Retractor
- For outer rear three-point seat belt
- With Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT, A5 COUPE/SPORTBACK .
- Center Rear Belt End Fitting
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
- Automatic Belt Retractor
- For the rear three-point seat belt in the center
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
- Right Rear Seat Belt Latch
- With Passenger Side Rear Seat Belt Switch -E259-
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, 3-PERSON BENCH SEAT .
- Rear Center Belt Latch
- With Center Rear Seat Belt Switch -E609-
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, 3-PERSON BENCH SEAT .
- Left Rear Seat Belt Latch
- With Driver Side Rear Seat Belt Switch -E258-
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, 3-PERSON BENCH SEAT .
- Automatic Belt Retractor
- For outer rear three-point seat belt
- With Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT, A5 COUPE/SPORTBACK .
- Belt Height Adjuster/Front Seat Belt Guide
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 SPORTBACK .
- Rear Belt End Fitting
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT, A5 COUPE/SPORTBACK .
- Automatic Belt Retractor
- For the front three-point seat belt
- With:
- Driver Seat Belt Tensioner Igniter 1 -N153-
- Driver Belt Force Limiter -G551-
- Equipment version with electric seat belt tensioner: Left Front Seat Belt Tensioner Control Module -J854-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 SPORTBACK .
- Front Belt End Fitting
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 SPORTBACK .
