Overview - Front Three-Point Seat Belt, A5 SPORTBACK

WARNING: This page is about a different variant/trim than selected.

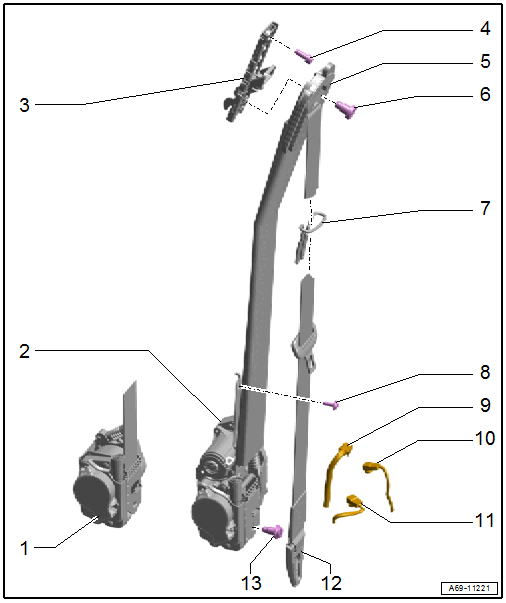

Fig 1: Exploded View Of - Front Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

Automatic Belt Retractor without Electric Seat Belt Tensioner
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, A5 COUPE/SPORTBACK .
Automatic Belt Retractor with Electric Belt Tensioner
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, A5 COUPE/SPORTBACK .
- The Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855- must be adapted after replacing the automatic belt retractors. Refer to Vehicle Diagnostic Tester.
Seat Belt Height Adjuster
- Seat belt height adjuster must be replaced if the belt tensioner has deployed with the belt buckled
- Removing and Installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
Bolt
- 27 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Seat Belt Guide
Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Front Seat Belt Guide
- Place seat belt webbing in the front seat belt guide
- Do not jam or damage the seat belt webbing
- Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
Bolt
- 4 Nm
Connector
- For the front seat belt tensioner control module
Connector
- For the seat belt force limiter
Connector
- For the seat belt tensioner igniter 1
Belt End Fitting
- Engaged to the pins and pull upward until the spring tabs audibly engage
- Removing and Installing. Refer to FRONT BELT ANCHOR, REMOVING AND INSTALLING, A5 SPORTBACK .
Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
