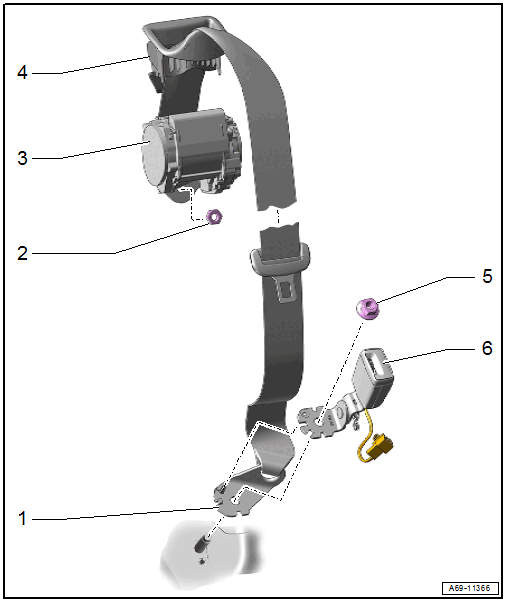

Overview - Rear Center Three-Point Seat Belt
WARNING: This page is about a different variant/trim than selected.
- Center Rear Belt End Fitting
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, 3-PERSON REAR SEAT .
- Nut
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Automatic Belt Retractor in the Center
- Removing and Installing. Refer to REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING .
- Belt Guide
- Replace the entire seat belt guide if damaged
- Removing and Installing. Refer to REAR SEAT BELT GUIDE IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Nut
- Tightening specification. Refer to -Item ) OVERVIEW - REAR SEAT BELT LATCH, 3-PERSON BENCH SEAT - List Item: Nut.
- Seat Belt Latch
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, 3-PERSON REAR SEAT .
