Component Location Overview - Airbag System, A5 Coupe/SPORTBACK
WARNING: This page is about a different variant/trim than selected.
NOTE:
The A5 Sportback is shown as an example.

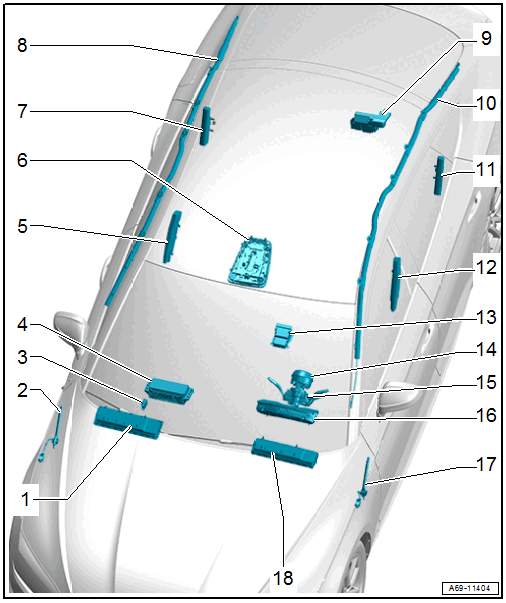

- Front Passenger Knee Airbag
- With Front Passenger Knee Airbag Igniter -N296-
- Market-Specific Version
- Overview. Refer to OVERVIEW - KNEE AIRBAG, FRONT PASSENGER SIDE .
- Pedestrian Protection Trigger 2 -G599-
- Market-Specific Version
- Overview. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
- Front Passenger Airbag Deactivation Key Switch -E224-
- NOT FOR NORTH AMERICAN MARKET
- Front Passenger Airbag
- With
- Front Passenger Airbag Igniter 1 -N131-
- Front Passenger Airbag Igniter 2 -N132-
- Front Passenger Airbag Release Valve Igniter -N491-
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- With
- Thorax Airbag on Front Passenger Side
- With Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Integrated in the Front Roof Module -WX3-. Cannot be replaced separately if faulty.
- Replace the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Rear Thorax Airbag on Front Passenger Side
- A5 Sportback only
- Overview. Refer to OVERVIEW - REAR THORAX AIRBAG .
- With Passenger Side Rear Thorax Airbag Igniter -N202-
- Front Passenger Head Curtain Airbag
- With Front Passenger Head Curtain Airbag Igniter -N252-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
- Battery Interrupt Igniter -N253-
- A5 g-tron: engine compartment battery
- Overview. Refer to OVERVIEW - BATTERY INTERRUPT IGNITER .
- Driver Head Curtain Airbag
- With Driver Head Curtain Airbag Igniter -N251-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
- Rear Thorax Airbag on Driver Side
- With Driver Side Rear Thorax Airbag Igniter -N201-
- A5 Sportback only
- Overview. Refer to OVERVIEW - REAR THORAX AIRBAG .
- Thorax Airbag on Driver Side
- With Driver Thorax Airbag Igniter -N199-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Airbag Control Module -J234-
- Overview. Refer to OVERVIEW - AIRBAG CONTROL MODULE .
- Driver Side Airbag
- With
- Driver Airbag Igniter -N95-
- Driver Airbag Release Valve Igniter -N490-
- Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
- With
- Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
- Airbag Indicator Lamp -K75-
- Replace the instrument cluster. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Integrated into the instrument cluster. Cannot be replaced separately if faulty.
- Pedestrian Protection Trigger 1 -G598-
- Market-Specific Version
- Overview. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
- Driver Side Knee Airbag
- Market-Specific Version
- With the Driver Knee Airbag Igniter -N295-
- Overview. Refer to OVERVIEW - KNEE AIRBAG, DRIVER SIDE .
