Overview - Rear Thorax Airbag

WARNING: This page is about a different variant/trim than selected.

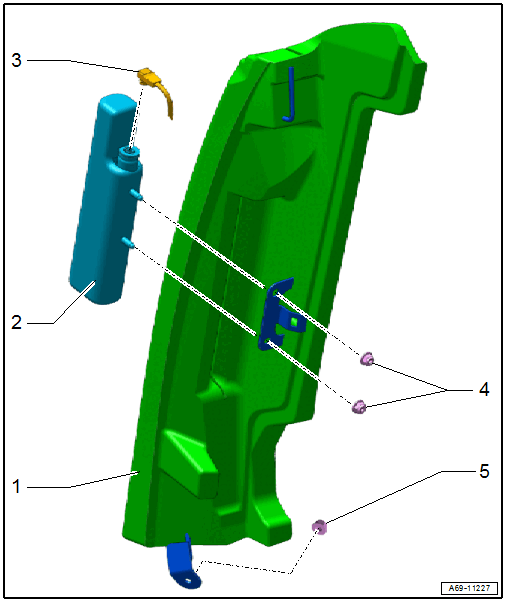

Fig 1: Exploded View Of Rear Thorax Airbag

Courtesy of AUDI OF AMERICA, LLC

Side Cushion
- Removing and Installing. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Rear Thorax Airbag
- With
  - Driver Side Rear Thorax Airbag Igniter -N201-
  - Passenger Side Rear Thorax Airbag Igniter -N202-
  WARNING:
  Risk of injury due to involuntary deployment.
  - Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING ON PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to REAR THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Connector
- For
  - Driver Side Rear Thorax Airbag Igniter -N201-
  - Passenger Side Rear Thorax Airbag Igniter -N202-
Nuts
- 6 Nm
- Replace after removing.
- Install with locking compound. Refer to the Parts Information for the locking compound.
Nut
- Tightening specification. Refer to OVERVIEW - REAR SEAT BACKREST, 2-PERSON REAR SEAT .
