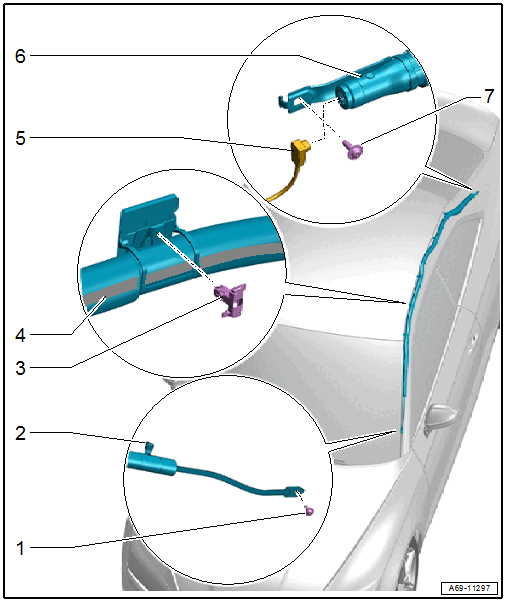

Overview - Head Curtain Airbag

WARNING: This page is about a different variant/trim than selected.

NOTE:

The A5 Coupe is shows as the example.

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 5 Nm
- Replace after removing.
Clip
- Quantity: 2
Clip
- Only available with -6-
- Remove with Clip Pliers: VAS211001
Colored Strip
- Serves as anti-rotation protector
- Must be visible after assembly.
Connector
- For
  - Driver Head Curtain Airbag Igniter -N251-
  - Front Passenger Head Curtain Airbag Igniter -N252-
Head Curtain Airbag
- With
  - Driver Head Curtain Airbag Igniter -N251-
  - Front Passenger Head Curtain Airbag Igniter -N252-
  WARNING:
  Risk of injury due to involuntary deployment.
  - Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING ON PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Bolt
- 5 Nm
- Replace after removing.
