Right Engine Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Support the engine in the installation position (refer to ENGINE, SUPPORTING IN INSTALLATION POSITION ) and pretension it with the : 10-222A/11 until the pressure on the engine mount is released.

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the front section of the wheel housing liner on the right front side. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the generator. Refer to GENERATOR, REMOVING AND INSTALLING .

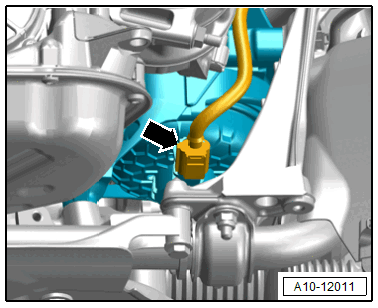

-- Release and disconnect the connector -arrow- for the Right Electrohydraulic Engine Mount Solenoid Valve -N145-. (Left shown.)

Fig 1: Left/Right Electrohydraulic Engine Mount Solenoid Valve -N144- / -N145- Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Free up the electrical wire.

-- Lower the subframe. Refer to SUBFRAME, LOWERING .

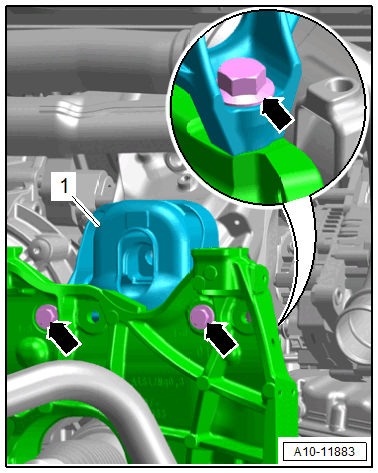

-- Remove the bolts -arrows- and right engine mount -1-.

Courtesy of AUDI OF AMERICA, LLC
