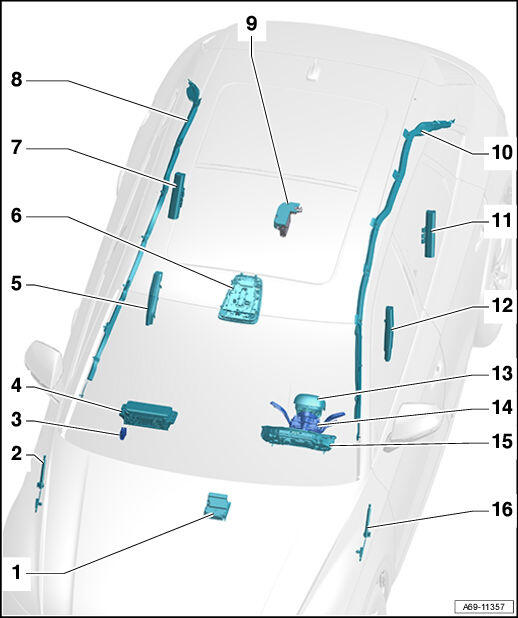

Component Location Overview - Airbag System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Airbag Control Module -J234-
- Refer to OVERVIEW - AIRBAG CONTROL MODULE
- Pedestrian Protection Trigger 2 -G599-
- Refer to OVERVIEW - PEDESTRIAN PROTECTION
- Front Passenger Airbag Deactivation Key Switch -E224-
- Not for North American market.
- Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING, (NOT FOR NORTH AMERICA MARKET)
- Front Passenger Airbag
- with
- Front Passenger Airbag Igniter 1 -N131-
- Front Passenger Airbag Igniter 2 -N132-
- North American versions: Front Passenger Airbag Release Valve Igniter -N491-
- Rest of World versions: locking and activation possible via the Front Passenger Airbag Deactivation Key Switch -E224-
- Refer to OVERVIEW - FRONT PASSENGER AIRBAG
- with
- Thorax Airbag on Front Passenger Side
- With the Front Passenger Thorax Airbag Igniter -N200-
- Refer to OVERVIEW - FRONT THORAX AIRBAG
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Integrated in the Front Roof Module -WX3-. Cannot be replaced separately if faulty.
- Replace the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Rear Thorax Airbag on Front Passenger Side
- With Passenger Side Rear Thorax Airbag Igniter -N202-
- Refer to OVERVIEW - REAR THORAX AIRBAG
- Front Passenger Head Curtain Airbag
- With the Front Passenger Head Curtain Airbag Igniter -N252-
- Refer to OVERVIEW - HEAD CURTAIN AIRBAG
- Battery Interrupt Igniter -N253-
- Refer to OVERVIEW - BATTERY INTERRUPT IGNITER
- Driver Head Curtain Airbag
- With the Driver Head Curtain Airbag Igniter -N251-
- Refer to OVERVIEW - HEAD CURTAIN AIRBAG
- Rear Thorax Airbag on Driver Side
- With Driver Side Rear Thorax Airbag Igniter -N201-
- Refer to OVERVIEW - REAR THORAX AIRBAG
- Thorax Airbag on Driver Side
- With the Driver Thorax Airbag Igniter -N199-
- Refer to OVERVIEW - FRONT THORAX AIRBAG
- Driver Side Airbag
- with
- Driver Airbag Igniter -N95-
- Driver Airbag Release Valve Igniter -N490-
- Refer to OVERVIEW - DRIVER SIDE AIRBAG
- with
- Steering Column Electronics Control Module -J527-
- with Spiral Spring -F350-
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
- Airbag Indicator Lamp -K75-
- Integrated into the instrument cluster. Cannot be replaced separately if faulty.
- Replace the instrument cluster. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Pedestrian Protection Trigger 1 -G598-
- Refer to OVERVIEW - PEDESTRIAN PROTECTION
