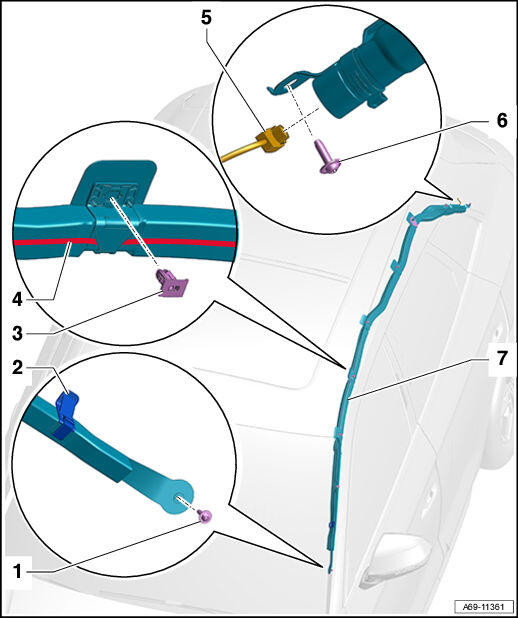

Overview - Head Curtain Airbag

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Bolt
- Replace after removing
- 5 Nm
Clip
Clip
- Available only with OVERVIEW - HEAD CURTAIN AIRBAG
- Remove with Clip Pliers:VAS 211 001
Colored Strip
- Serves as anti-rotation protector
- must be visible after assembly.
Connector
- For
  - Driver Head Curtain Airbag Igniter -N251-
  - Front Passenger Head Curtain Airbag Igniter -N252-
Bolt
- Replace after removing
- 5 Nm
Head Curtain Airbag
- with
  - Driver Head Curtain Airbag Igniter -N251-
  - Front Passenger Head Curtain Airbag Igniter -N252-
- Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING
