Overview - Instrument Cluster
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

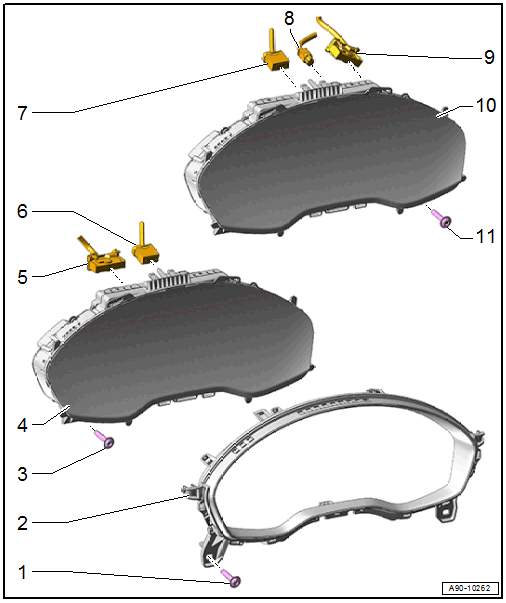

- Bolt
- Quantity: 2
- 1.5 Nm
- Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 3 Nm
- Instrument Cluster - with Driver Information System
- There are different versions. Refer to the appropriate Electronic Parts Information.
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, WITH DRIVER INFORMATION SYSTEM .
- Connector
- For the instrument cluster
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS 6223/9
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS 6223/9
- Antenna Wire
- Connector
- For the instrument cluster
- Instrument Cluster - Audi Virtual Cockpit
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, AUDI VIRTUAL COCKPIT .
- Bolt
- Quantity: 2
- 3 Nm
