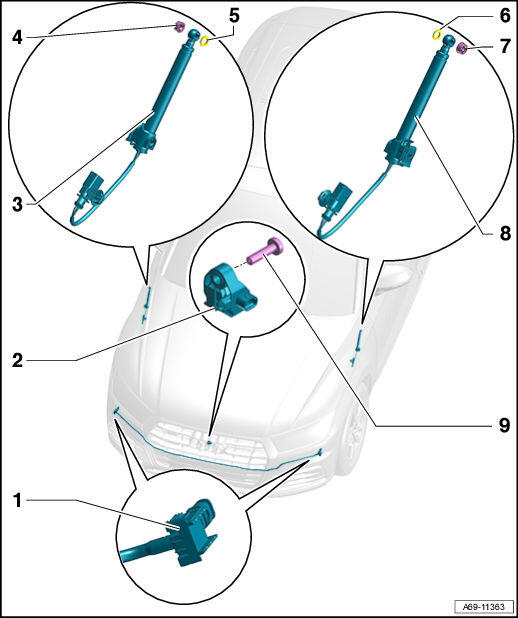

Overview - Pedestrian Protection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Driver Side Pedestrian Protection Crash Sensor 2
- LHD in the direction of travel on the left side: Driver Side Pedestrian Protection Crash Sensor 2 -G851-
- LHD in the direction of travel on the right side: Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
- RHD in the direction of travel on the right side: Driver Side Pedestrian Protection Crash Sensor 2 -G851-
- RHD in the direction of travel on the left side: Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
- Unit with pressure hose
- Component location: in the molded foam part on the impact member
- Must be replaced when
  - The molded foam part is visibly damaged.
  - The impact member is visibly deformed.
  - Bumper cover very damaged / visibly damaged
  - The pressure hose is damaged.
- Place the pressure hose in the groove on the molded foam part.
- Insert the pressure hose in the molded foam part, excess pieces are routed without kinks in the balancing zones
- Do not kink or squeeze the pressure hose.
- Refer to PEDESTRIAN PROTECTION CRASH SENSOR, REMOVING AND INSTALLING
Pedestrian Protection Center Crash Sensor -G693-
- Component location: bumper cover
- Refer to Pedestrian Protection Center Crash Sensor -G693-, REMOVING AND INSTALLING
Pedestrian Protection Trigger in Direction of Travel on the Right Side
- LHD: Pedestrian Protection Trigger 2 -G599-
- RHD: Pedestrian Protection Trigger 1 -G598-
- Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
- Refer to Pedestrian Protection Trigger 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 Pedestrian Protection Trigger 2 -G599-, REMOVING AND INSTALLING
Clip
Seal
Seal
Clip
Pedestrian Protection Trigger in Direction of Travel on the Left Side
- LHD: Pedestrian Protection Trigger 1 -G598-
- RHD: Pedestrian Protection Trigger 2 -G599-
- Triggered Pedestrian Protection, Resetting. Refer to HINGE, RESETTING
- Refer to Pedestrian Protection Trigger 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 Pedestrian Protection Trigger 2 -G599-, REMOVING AND INSTALLING
Bolt
- 6 Nm
