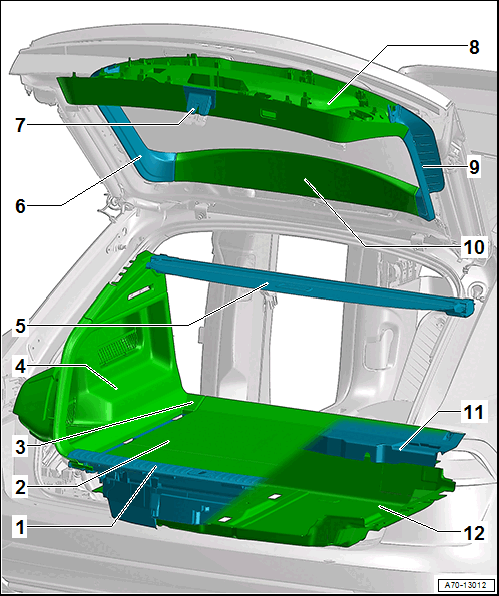

Component Location Overview - Luggage Compartment Trim Panels
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Lock Carrier Trim Panel
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
- Luggage Compartment Floor
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
- Luggage Compartment Side Trim Panel Bracket
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
- Luggage Compartment Side Trim Panel
- Roll Cover
- Rear Lid Side Trim Panel
- Refer to OVERVIEW - REAR LID UPPER TRIM PANEL
- Rear Lid Latch Trim Panel
- Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
- Rear Lid Lower Trim Panel
- Refer to OVERVIEW - REAR LID LOWER TRIM PANEL
- Rear Lid Side Trim Panel
- Refer to OVERVIEW - REAR LID UPPER TRIM PANEL
- Rear Lid Upper Trim Panel
- Refer to OVERVIEW - REAR LID UPPER TRIM PANEL
- Luggage Compartment Floor Covering Front Bracket
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
- Spare Wheel Well Trim
- Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR
