Overview - Rear Lid Upper Trim Panel

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

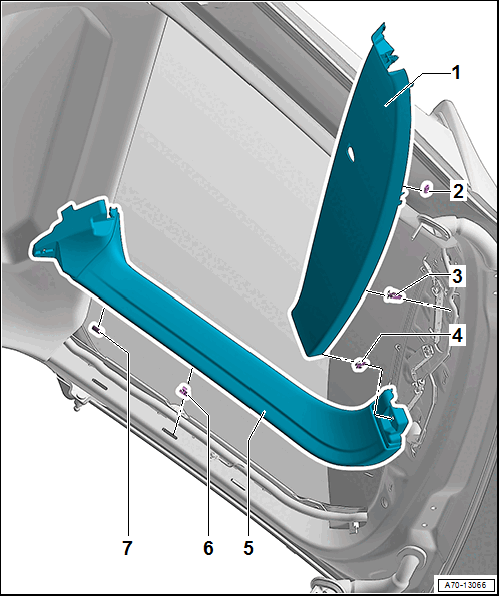

Fig 1: Exploded View Of Rear Lid Upper Trim Panel
GWWA70-13066Courtesy of AUDI
  1. Rear Lid Upper Trim Panel
  2. Rubber Buffer
    • Insert in the rear lid upper trim panel
    • Quantity: 4
  3. Clip
    • Insert in the rear lid upper trim panel
    • Quantity: 5
  4. Clip
    • Insert in the rear lid side trim panel
    • Quantity: 2
  5. Rear Lid Side Trim Panel
  6. Clip
    • Insert in the rear lid side trim panel
    • 3 each
  7. Rubber Buffer
    • Insert in the rear lid side trim panel
    • 3 each
