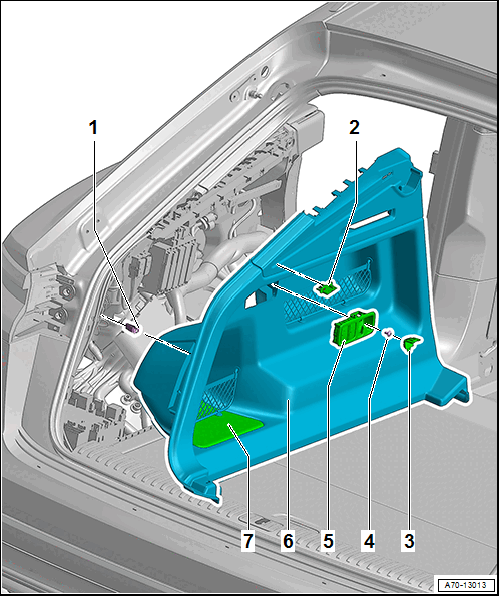

Overview - Luggage Compartment Side Trim Panel
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Insert in the luggage compartment side trim panel
- Quantity: 4
- Driver
- For the roll cover
- Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING
- Trim
- Installed depending on vehicle equipment
- Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING
- Bolt
- 3 Nm
- Installed depending on vehicle equipment
- Loading Sill Lowering and Trailer Hitch Control Head -EX52-
- Installed depending on vehicle equipment
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT .
- Luggage Compartment Side Trim Panel
- Service Cover
- Insert in the luggage compartment side trim panel and press on it until it engages.
