Overview - Final Drive
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- The differential can be removed and installed without removing the shifter, input shaft, output shaft, drive pinion and transmission housing.
- The bearing pre-load for the differential bearing must be adjusted when replacing the final drive cover -5-. Refer to FINAL DRIVE COVER, REPLACING .
- When replacing the differential bearing, the final drive must be adjusted. Refer to FINAL DRIVE, ADJUSTING WHEN REPLACING DIFFERENTIAL OR DIFFERENTIAL BEARING .
- When replacing the differential, the final drive must be adjusted. Refer to FINAL DRIVE, ADJUSTING .

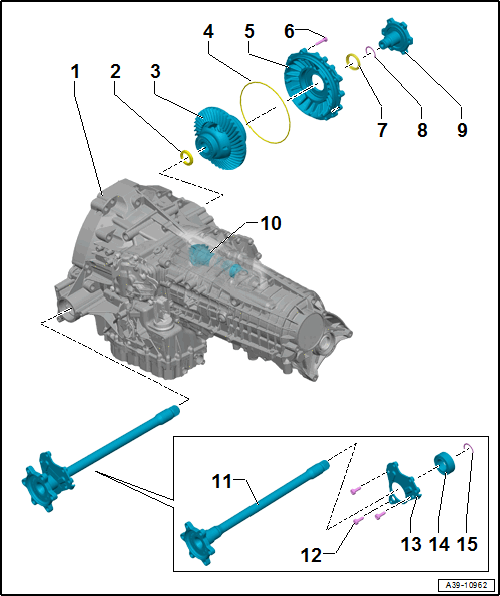

- Transmission Housing
- Seal
- For the left flange shaft
- Replacing. Refer to LEFT SEAL, REPLACING .
- Differential with Ring Gear
- Overview. Refer to OVERVIEW - DIFFERENTIAL .
- Removing and Installing. Refer to DIFFERENTIAL, REMOVING AND INSTALLING .
- O-Ring
- Coat with transmission fluid
- Replace after removing
- Final Drive Cover
- Replacing. Refer to FINAL DRIVE COVER, REPLACING .
- Bolt
- Quantity: 12
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
- Seal
- For the right flange shaft
- Replacing. Refer to RIGHT SEAL, REPLACING .
- Circlip
- Replace after removing
- Removing and Installing. Refer to Installing .
- Right Flange Shaft
- Removing and Installing. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING .
- Pinion
- Removing and Installing. Refer to PINION, REMOVING AND INSTALLING .
- Left Flange Shaft
- With mounting bracket and ball bearing
- Removing and Installing. Refer to LEFT FLANGE SHAFT, REMOVING AND INSTALLING .
- Replacing the ball bearing or mounting bracket. Refer to MOUNTING BRACKET AND BALL BEARING FOR LEFT FLANGE SHAFT, REPLACING .
- Bolts
- 10 Nm +90°
- Mounting Bracket
- For the left flange shaft
- Replacing. Refer to MOUNTING BRACKET AND BALL BEARING FOR LEFT FLANGE SHAFT, REPLACING .
- Ball Bearing
- For the left flange shaft
- Replacing. Refer to MOUNTING BRACKET AND BALL BEARING FOR LEFT FLANGE SHAFT, REPLACING .
- Circlip
- Replace after removing
Final drive cover - tightening specification and sequence
-- Tighten the bolts in steps according to the specified sequence:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1 | -1 to 12- | 3 Nm |
| 2 | -1 to 12- | 20 Nm |
| 3 | -1 to 12- | 90° additional turn |
