Overview - Differential

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Always replace both differential bearings together.
Adjustments are required when replacing components marked with ¹⁾ . Refer to FINAL DRIVE, ADJUSTING .

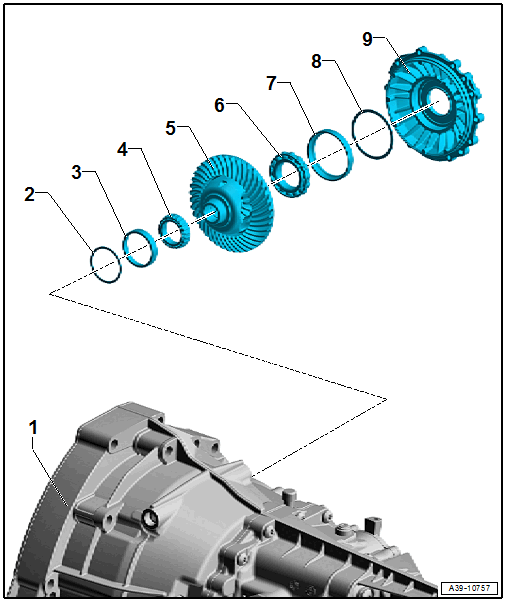

Fig 1: Differential Exploded View

Courtesy of AUDI

Transmission Housing ¹⁾
Shim "S ₂ "
- Pay attention to the thickness
- When replacing the differential bearing, the thickness must be determined again. Refer to FINAL DRIVE, ADJUSTING .
Tapered Roller Bearing Outer Race ¹⁾
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Tapered Roller Bearing Inner Race ¹⁾
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Differential with Ring Gear ¹⁾
- The ring gear cannot be removed from the differential.
- The differential bevel gears cannot be replaced.
Angular Contact Ball Bearing Inner Race ¹⁾
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Angular Contact Ball Bearing Outer Race ¹⁾
- Removing. Refer to Figure and Refer to Figure.
- Installing. Refer to Figure.
Shim "S ₁ "
- Pay attention to the thickness
- If the differential bearing or the cover for the front final drive is replaced OVERVIEW - DIFFERENTIAL, the thickness must be determined again. Refer to FINAL DRIVE, ADJUSTING .
Final Drive Cover ¹⁾
- When replacing, the shim "S₁ " must be determined again. Refer to FINAL DRIVE COVER, REPLACING .

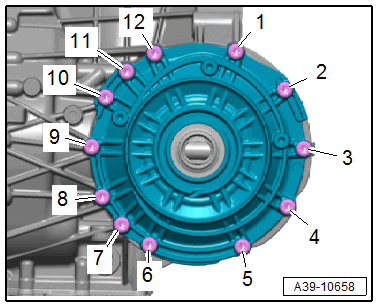

- Tightening specification and sequence. Refer to Figure.
