Component Location Overview - Abs/Esp
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

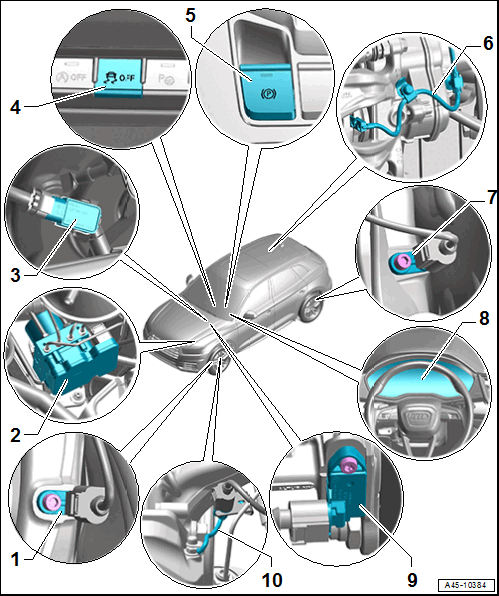

- Front Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45-
- Left Front ABS Wheel Speed Sensor -G47-
- Refer to OVERVIEW - FRONT AXLE SPEED SENSOR
- Hydraulic Control Unit
- Installed location: in the front left engine compartment.
- With
- ABS Control Module -J104-
- ABS Hydraulic Unit -N55-
- The control module and the hydraulic unit can be separated
- Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
- Vacuum Sensor -G608-
- RHD: is a mirror image
- For vehicles with vacuum brake booster
- Refer to OVERVIEW - VACUUM PUMP
- Switch Module in Instrument Panel, Center -EX22-
- With
- ASR/ESP Button -E256-
- Refer to the appropriate Service Information. .
- With
- Electromechanical Parking Brake Button -E538-
- RHD: is a mirror image
- With
- Electromechanical Parking Brake Indicator Lamp -K213-
- Push Button Illumination Bulb -L76-
- Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
- Right Rear Brake Pad Wear Sensor -G37-
- Only on the right side in the inner brake pad
- Refer to OVERVIEW - REAR BRAKES
- Rear Speed Sensor
- Right Rear ABS Wheel Speed Sensor -G44-
- Left Rear ABS Wheel Speed Sensor -G46-
- Refer to OVERVIEW - REAR AXLE SPEED SENSOR
- Instrument Cluster with Instrument Cluster Control Module -J285-
- RHD: is a mirror image
- The indicator lamps cannot be replaced separately
- Replace the instrument cluster if faulty. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Brake Lamp Switch -F-
- For vehicles with vacuum brake booster
- Component location: on the brake master cylinder
- RHD: is a mirror image
- Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER
- Left Front Brake Pad Wear Sensor -G34-
- Only on the left side in the inner brake pad
- Refer to OVERVIEW - FRONT BRAKES
