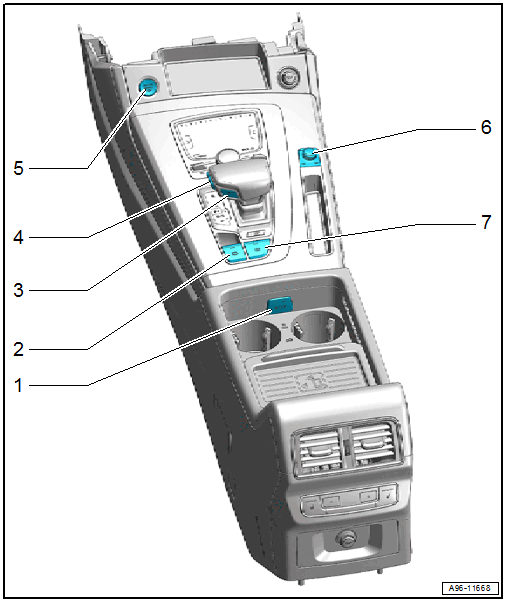

Component Location Overview - Controls In Center Console
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Button for Cupholder Cooling/Heating
- Integrated in the cupholder. Cannot be replaced separately if faulty.
- Replace the cupholder. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Electromechanical Parking Brake Button -E538-
- RHD: is a mirror image
- Removing and Installing. Refer to Electromechanical Parking Brake Button -E538- /-Auto Hold- Button -E540-, REMOVING AND INSTALLING .
- Parking Lock Button -E816-
- RHD: is a mirror image
- Integrated in the selector lever handle. Cannot be replaced separately if faulty.
- Selector Lever Handle, Replacing. Refer to SHIFT MECHANISM .
- Selector Lever Release Button -E681-
- RHD: is a mirror image
- Integrated in the selector lever handle. Cannot be replaced separately if faulty.
- Selector Lever Handle, Replacing. Refer to SHIFT MECHANISM .
- Access/Start Authorization Button -E408-
- RHD: is a mirror image
- Removing and Installing. Refer to Access/Start Authorization Button -E408-, REMOVING AND INSTALLING .
- Driver Volume Control -E67-
- RHD: is a mirror image
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
- -Auto Hold- Button -E540-
- RHD: is a mirror image
- Removing and Installing. Refer to Electromechanical Parking Brake Button -E538- /-Auto Hold- Button -E540-, REMOVING AND INSTALLING .
