Overview - Camshaft Housing

WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

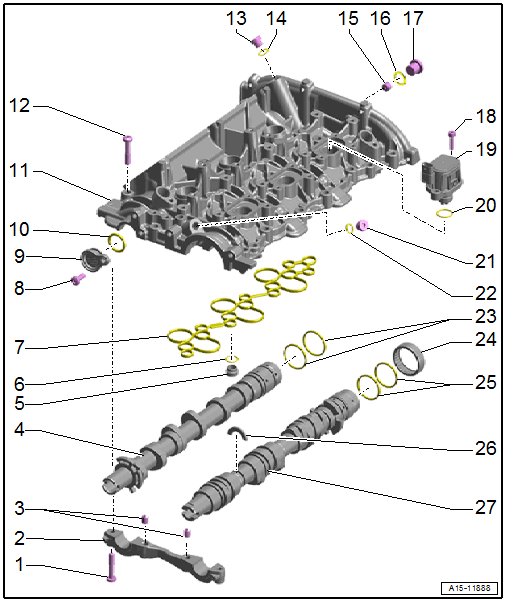

Fig 1: Exploded View Of Camshaft Housing

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 9 Nm
- Always replace after removing.
Bearing Cap
- Removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Note the installation position
Alignment Sleeves
Exhaust Camshaft
- Removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Axial play, measuring. Refer to CAMSHAFT, MEASURING AXIAL CLEARANCE .
- Radial play, measuring. Refer to CAMSHAFT, MEASURING RADIAL CLEARANCE .
- Maximum run out: 0.04 mm
Check Valve
- For oil separator
O-Ring
- Always replace after removing.
Seal
- Always replace after removing.
Bolt
- 9 Nm
Plugs
O-Ring
- Always replace after removing.
Camshaft Housing
- Shown for cylinder bank 2 (left)
- Removing and installing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
Bolt
- Tightening Specifications and Sequence:
  - Cylinder bank 1 (right). Refer to Fig 2.
  - Cylinder bank 2 (left). Refer to Fig 3.
- Always replace after removing.
Plug
- 5 Nm + 90°
- Always replace after removing.
Seal
- Always replace after removing.
Restrictor
- Cylinder bank I 20 Nm
- Cylinder bank II 15 Nm
O-Ring
- Always replace after removing.
Plug
- 25 Nm
Bolt
- 3 Nm + 90°
- Always replace after removing.
Cam Actuator
- Removing and installing. Refer to CAM ACTUATOR, REMOVING AND INSTALLING .
O-Ring
- Not available separately; replace if leaking -item- 19 or damaged
- Coat with engine oil
- Check for damage
Plug
- 5 Nm + 90°
- Always replace after removing.
Seal
- Always replace after removing.
Compression Rings
Friction Bearing
- For the intake camshaft
- Removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
Compression Rings
Axial Bearing
Intake Camshaft
- Removing and installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Axial play, measuring. Refer to CAMSHAFT, MEASURING AXIAL CLEARANCE .
- Radial play, measuring. Refer to CAMSHAFT, MEASURING RADIAL CLEARANCE .
- Maximum run out: 0.04 mm

Cylinder Bank 1 (Right) Camshaft Housing - Tightening Specification and Sequence

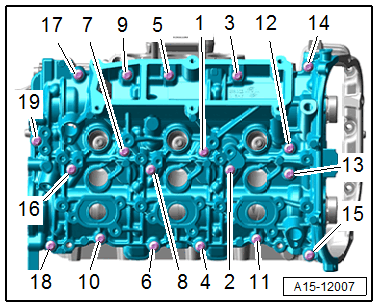

Fig 2: Cylinder Bank 1 (Right) Camshaft Housing - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Replace the bolts that were tightened with an additional turn after removing them.

-- Tighten the bolts in the steps shown in the sequence:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 to 20-	Install by hand all the way The camshaft housing contact surface must lay entirely on top of the cylinder head
2.	-1 to 20-	8 Nm
3.	-1 to 20-	90° additional turn

Cylinder Bank 2 (Left) Camshaft Housing - Tightening Specification and Sequence

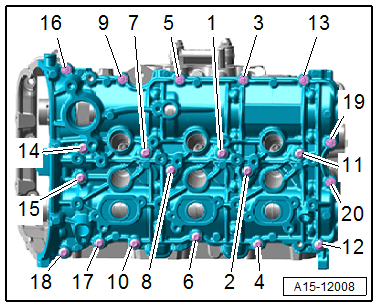

Fig 3: Cylinder Bank 2 (Left) Camshaft Housing - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Replace the bolts that were tightened with an additional turn after removing them.

-- Tighten the bolts in the steps shown in the sequence:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 to 19-	Install by hand all the way The camshaft housing contact surface must lay entirely on top of the cylinder head
2.	-1 to 19-	8 Nm
3.	-1 to 19-	90° additional turn
