Camshaft, Measuring Axial Clearance

WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Dial Indicator Holder:VW387
Dial Gauge - 0-10mm:VAS6079

Procedure

The camshaft housing is removed. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .

-- Remove the :T40331/1 .

-- Secure the :VAS6079 with the :VW387 on the camshaft housing.

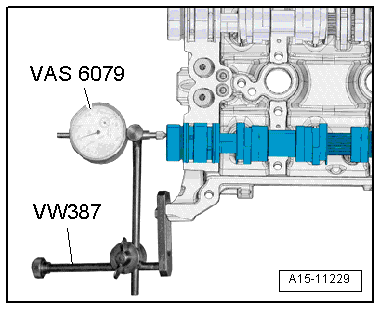

Fig 1: Identifying Dial Gauge Holder VW 387 And Dial Gauge - 0-10 mm VAS 6079

Courtesy of AUDI OF AMERICA, LLC

-- Press the camshaft against the dial gauge by hand.

-- Set the dial gauge to "0".

-- Press camshaft off the dial gauge and read the value:

Axial clearance

Intake camshaft: 0.014 to 0.064 mm.
Exhaust camshaft: 0.048 to 0.155 mm.
