Component Location Overview - Seat Belts And Mounting Points

WARNING: This page is about a different variant/trim than selected.
NOTE:

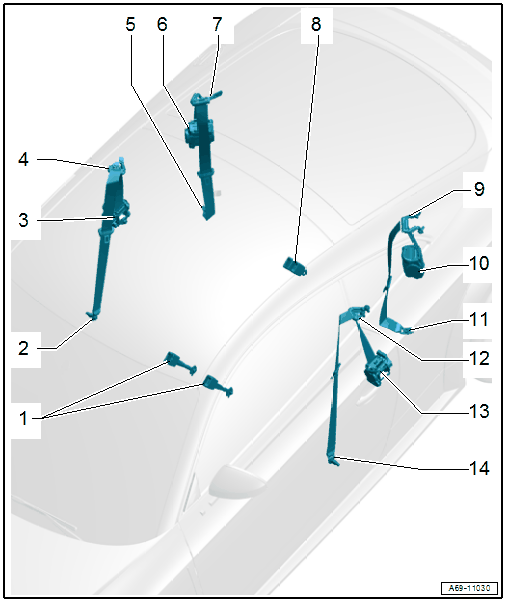

The seat belt for the TT Coupe is illustrated.

GWWA69-11030Courtesy of AUDI OF AMERICA, LLC
  1. Front Seat Belt Latch
  2. Front Belt End Fitting
  3. Automatic Belt Retractor
    • For the front three-point seat belt
    • With:
      • Front Passenger Seat Belt Tensioner Igniter 1 -N154-
      • Front Passenger Belt Force Limiter -G552-
      • Equipped on some models/market-specific: Right Front Seat Belt Tensioner Control Module -J855-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
  4. Front Seat Belt Guide
  5. Rear Belt End Fitting
  6. Automatic Belt Retractor
  7. Rear Seat Belt Guide
  8. Rear Seat Belt Latch
  9. Rear Seat Belt Guide
  10. Automatic Belt Retractor
  11. Rear Belt End Fitting
  12. Front Seat Belt Guide
  13. Automatic Belt Retractor
    • For the front three-point seat belt
    • With:
      • Driver Seat Belt Tensioner Igniter 1 -N153-
      • Driver Belt Force Limiter -G551-
      • Equipped on some models/market-specific: Left Front Seat Belt Tensioner Control Module -J854-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
  14. Front Belt End Fitting
