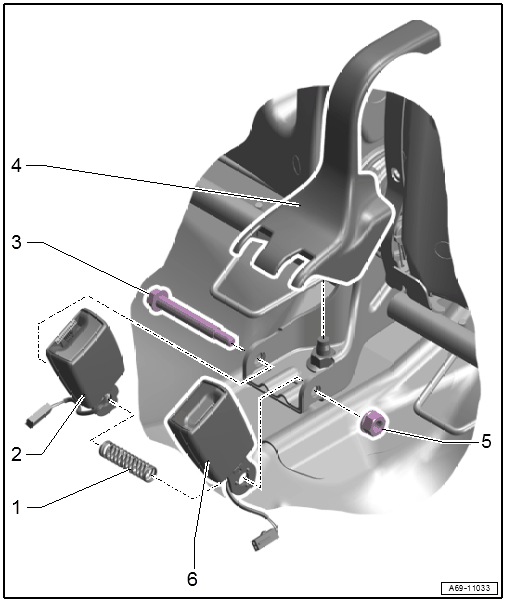

Overview - Rear Seat Belt Latch
WARNING: This page is about a different variant/trim than selected.
- Pressure Spring
- Right Seat Belt Latch
- with Passenger Side Rear Seat Belt Switch -E259-
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Replace the seat belt latch if the belt tensioner has deployed with the belt on
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Cover
- Nut
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Left Seat Belt Latch
- With Driver Side Rear Seat Belt Switch -E258-
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Replace the seat belt latch if the belt tensioner has deployed with the belt on
