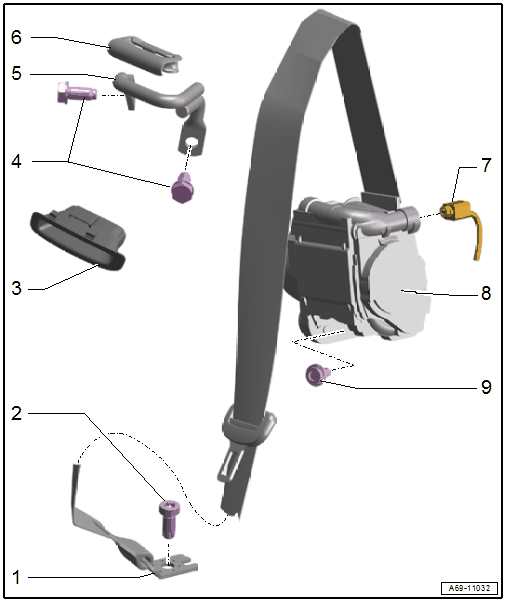

Overview - Outer Rear Three-Point Seat Belt
WARNING: This page is about a different variant/trim than selected.
- Belt End Fitting
- Removing and installing. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Seat Belt Guide
- Clipped in the C-pillar trim panel
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Bolts
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Seat Belt Guide
- Removing and installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Seat Belt Guide
- Clipped in on the seat belt guide
- Removing and installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Connector
- Automatic Belt Retractor
- Driver side: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Passenger side: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Removing and installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
