Overview - Front Seat Belt Latch

WARNING: This page is about a different variant/trim than selected.

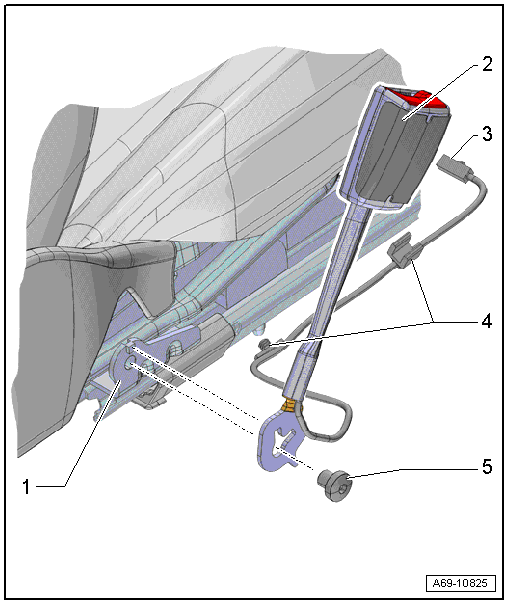

Fig 1: Exploded View Of Front Seat Belt Latch
GWWA69-10825Courtesy of AUDI OF AMERICA, LLC
  1. Front Seat
  2. Front Seat Belt Latch
    • Driver side: with Driver Seat Belt Switch -E24-
    • Front passenger side: with Front Passenger Seat Belt Switch -E25-
    • Removing and installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
    • Replace the seat belt latch if the belt tensioner has deployed with the belt on
  3. Connector
    • For the seat belt switch
  4. Cable Holder
    • Clipped in the seat frame.
  5. Bolt
    • 34.5 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
