Overview - Front Seat, Power Standard Seat/Sport Seat

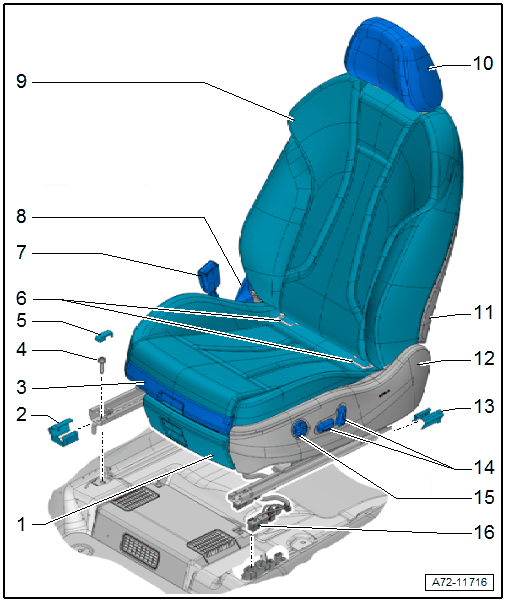

Fig 1: Exploded View Of Front Seat, Power Standard Seat/Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Storage Compartment
- Overview. Refer to OVERVIEW - SEAT PAN, STORAGE COMPARTMENT .
Seat Rail Front Cover
- Quantity: 2
- Removing and Installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Carefully push onto the seat rail until it engages audibly
Seat Depth Adjuster
- Only for Sport seats
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT DEPTH ADJUSTER .
Bolt
- Quantity: 4
- 40 Nm
Spindle Cover for Seat Rail
- Quantity: 2
- Carefully push onto the spindle until it engages audibly
Child Seat Anchor
- Equipped on some models
- for the front passenger seat only
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
- Checking after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION .
Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Tunnel Side Seat Side Trim
- Removing and Installing. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
Standard Seat/Sport Seat
Vehicles with:
- Fabric
- Leather
- Seat and backrest heating
- Footwell Lamp
- Removing and Installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
Headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
Backrest Cover
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
Seat Side Trim on Side Sill
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, POWER FRONT SEAT .
Seat Rail Rear Cover
- Quantity: 2
- Removing and Installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Carefully push onto the seat rail until it engages audibly
Driver Seat Adjustment Control Head -E470-
- Front passenger side: Front Passenger Seat Adjustment Control Head -E471-
- Overview. Refer to OVERVIEW - SEAT PAN, SIDE SILL/TUNNEL SIDE SEAT SIDE TRIM ON POWER FRONT SEAT .
Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
Connector
- Wire routing with protective cover
- Remove the individual wire. Refer to FRONT SEAT WIRE ROUTING .
