Overview - Front Child Seat Anchors

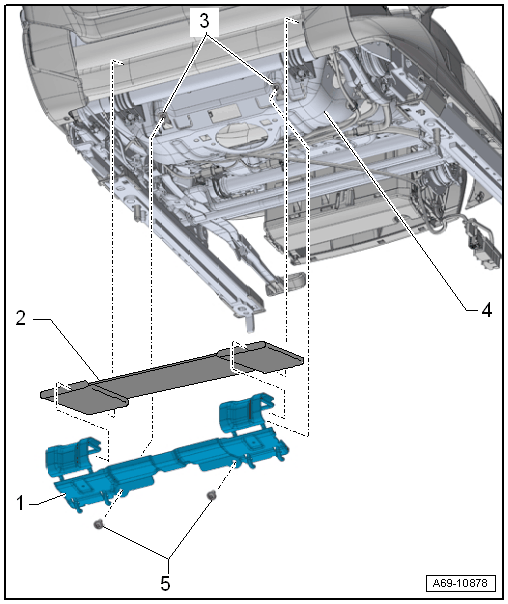

Fig 1: Exploded View Of Front Child Seat Anchors

Courtesy of AUDI OF AMERICA, LLC

Child Seat Anchor
- Front passenger seat only
- Bolted to the seat pan
- Check after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION .
- Replace damaged or deformed child seat anchor
- Removing and Installing. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
Child Seat Anchor Cover
- Removing and Installing. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
Spring Nut
- Quantity: 2
- Attached in the seat pan
- Replace any damaged or deformed spring nuts
Seat Pan
Bolt
- Quantity: 2
- Always replace after removing
- 8 Nm
