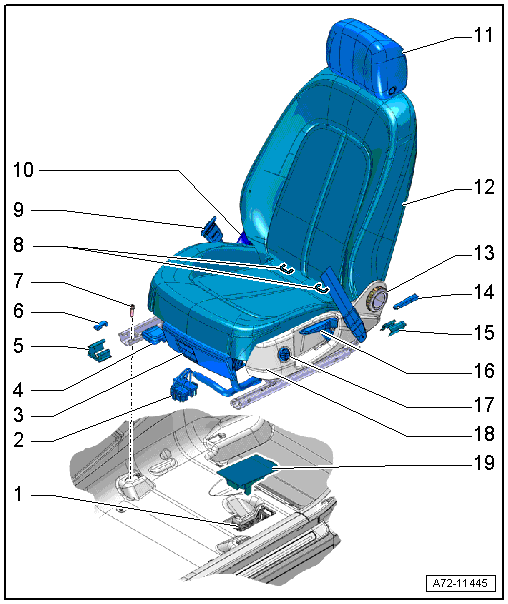

Overview - Front Seat, Standard Seat/Sport Seat (Manual)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Connector Station
- Connector assignment Connector Assignment .
- Removing and installing. Refer to Connector Station, Removing .
- Connector
- With a corrugated tube for the modular wiring routing
- Modular wiring with corrugated tube on front seat. Refer to FRONT SEAT WIRE ROUTING .
- Storage Compartment
- Equipment levels
- Overview. Refer to OVERVIEW - SEAT PAN, STORAGE COMPARTMENT .
- Seat Forward/Back Adjuster
- Overview. Refer to OVERVIEW - SEAT PAN, FRAME/SEAT FORWARD/BACK ADJUSTMENT .
- Front Cover
- For the seat rail
- Quantity: 2
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Push onto the seat rail until it audibly latches
- Front spindle cover
- Quantity: 2
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Push onto the seat rail until it audibly latches
- Bolt
- 50 Nm
- Quantity: 4
- LATCH Child Seat Anchor
- Equipment levels
- For the front passenger seat only
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
- For checking after an accident, refer to CHILD SEAT ANCHORS, CHECKING AFTER A COLLISION .
- Seat Belt Latch
- Removing and installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
- Tunnel-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON THE TUNNEL SIDE, REMOVING AND INSTALLING .
- Headrest
- Equipment levels
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Standard Seat/Sport Seat
Vehicles with:
- Seat/backrest heating
- Lumbar Support
- Footwell lamp
- Rear seat entertainment
- Seat angle adjustment only for sport seat
- Seat depth adjustment only for sport seat
- Removing and installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
- Hand Wheel
- For backrest adjustment
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (MANUAL) .
- Spindle Rear Cover
- Quantity: 2
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Push onto the seat rail bolt until it audibly latches
- Rear Cover
- For the seat rail
- Quantity: 2
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Push onto the seat rail until it audibly latches
- Seat Height Adjuster
- Overview. Refer to OVERVIEW - SEAT PAN SEAT HEIGHT ADJUSTMENT .
- Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Equipment levels
- Removing and installing. Refer to DRIVER/FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
- Lumbar Support, removing and installing. Refer to LUMBAR SUPPORT ADJUSTMENT MOTORS -V125- / -V126- / -V129- / -V130-, REMOVING AND INSTALLING .
- Sill-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (MANUAL) .
- Cover
- For the connector station
- Removing and installing. Refer to Connectors, disconnecting .
