Overview - Seat Pan, Frame/Seat Forward/Back Adjustment
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Standard Seat/Sport Seat (Manual)
NOTE:
To repair the seat forward/back adjustment, there is a repair kit available.
- Front Seat
- Seat Forward/Back Adjuster
- Unit with seat upper section (seat pan)
- Cannot be replaced separately. For the repair kit .
- When repairing, replace the connecting rod. Refer to SEAT FORWARD/BACK ADJUSTMENT, REPAIRING AND CONNECTING ROD, REPLACING .
- Seat Forward/Back Adjuster Release Cable
- Removing and installing. Refer to SEAT FORWARD/BACK ADJUSTMENT RELEASE CABLE, REMOVING AND INSTALLING .
- It is not possible to adjust the release cable
- Clip or Cable Tie
- Handle
- For seat forward/back adjustment
- Removing and installing. Refer to SEAT FORWARD/BACK ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Must lock with the clip
- Clip
- Replace
- Actuator
- for seat forward/back adjustment
- Spring
- For lever for seat forward/back adjuster release cable retainer
- Different components for driver and front passenger side
- Removing and installing. Refer to RELEASE CABLE RETAINER/SEAT FORWARD/BACK ADJUSTMENT LEVER AND SPRING, REMOVING AND INSTALLING .
- Lever
- For seat forward/back adjuster release cable retainer
- Same part for driver and front passenger seat
- Removing and installing. Refer to RELEASE CABLE RETAINER/SEAT FORWARD/BACK ADJUSTMENT LEVER AND SPRING, REMOVING AND INSTALLING .
Power Standard Seat/Sport Seat/Super Sport Seat
- Seat Depth Adjuster
- Only for Sport seat/Super Sport seat
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING, SPORT SEAT/SUPER SPORT SEAT .
- Allocation.
- Upper Seat Frame
- Removing and installing. Refer to UPPER SEAT FRAME, REMOVING AND INSTALLING .
- Allocation.
- Install all electrical and electronic components and wires in the new upper frame.
- Washer
- Bolt
- Quantity: 4
- Self-locking
- Replace
- Threaded holes for bolts must be cleaned, for example, with a thread tap
- 22 Nm
- Lower Seat Frame
- Driver side: with Driver Seat Forward/Back Adjustment Motor -V28-
- Front passenger side: with Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Cannot be disassembled
- Removing and installing. Refer to LOWER SEAT FRAME/FORWARD/BACK ADJUSTMENT MOTOR, REMOVING AND INSTALLING .
- For replacing, install the Removing and Installing and seat belt latch in the new lower frame
- Bushing
- Inserted in all bearing locations
- Cannot be replaced
- The assembly component must be replaced if the bushing is damaged

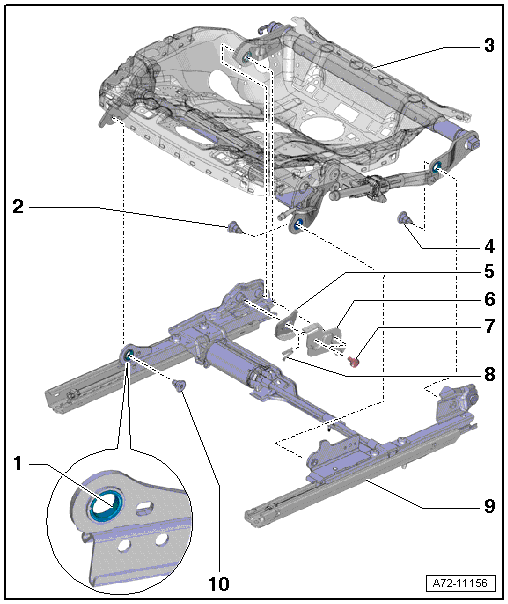

Multicontour Seat
- Bushing
- Inserted in all bearing locations
- Cannot be replaced
- The assembly component must be replaced if the bushing is damaged
- Bolt
- 22 Nm
- Self-locking
- Replace
- Threaded holes for bolts must be cleaned, for example, with a thread tap
- Upper Seat Frame
- Removing and installing. Refer to UPPER SEAT FRAME, REMOVING AND INSTALLING .
- Allocation.
- Install all electrical and electronic components and wires in the new upper frame.
- Bolt
- 22 Nm
- Self-locking
- Replace
- Threaded holes for bolts must be cleaned, for example, with a thread tap
- Safety Ground Lock
- Removing and installing. Refer to SAFETY GROUND LOCK, REMOVING AND INSTALLING .
- Check for ease of movement Checking Safety Ground Lock for Ease of Movement .
- Retaining Plate
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - SEAT PAN, SAFETY GROUND LOCK .
- Spring
- Lower Seat Frame
- Driver side: with Driver Seat Forward/Back Adjustment Motor -V28-
- Front passenger side: with Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Cannot be disassembled
- Removing and installing. Refer to LOWER SEAT FRAME/FORWARD/BACK ADJUSTMENT MOTOR, REMOVING AND INSTALLING .
- For replacing, install the Removing and Installing and seat belt latch in the new lower frame
- Bolt
- 22 Nm
- Self-locking
- Replace
- Threaded holes for bolts must be cleaned, for example, with a thread tap
