Connector Assignment
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

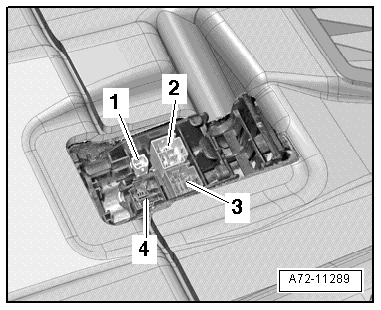

Refer to appropriate SYSTEM WIRING DIAGRAM.
- Side airbag
- Seat heating
- Seat adjustment voltage supply
- Seat Belt Latch
NOTE:
The number of connectors may vary depending on equipment. The description shows the version with the most equipment possible.
WARNING:
Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.
-- Connect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
NOTE:
If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again. .
