Component Location Overview - Sound System, Speaker, Bang & OLUFSEN

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

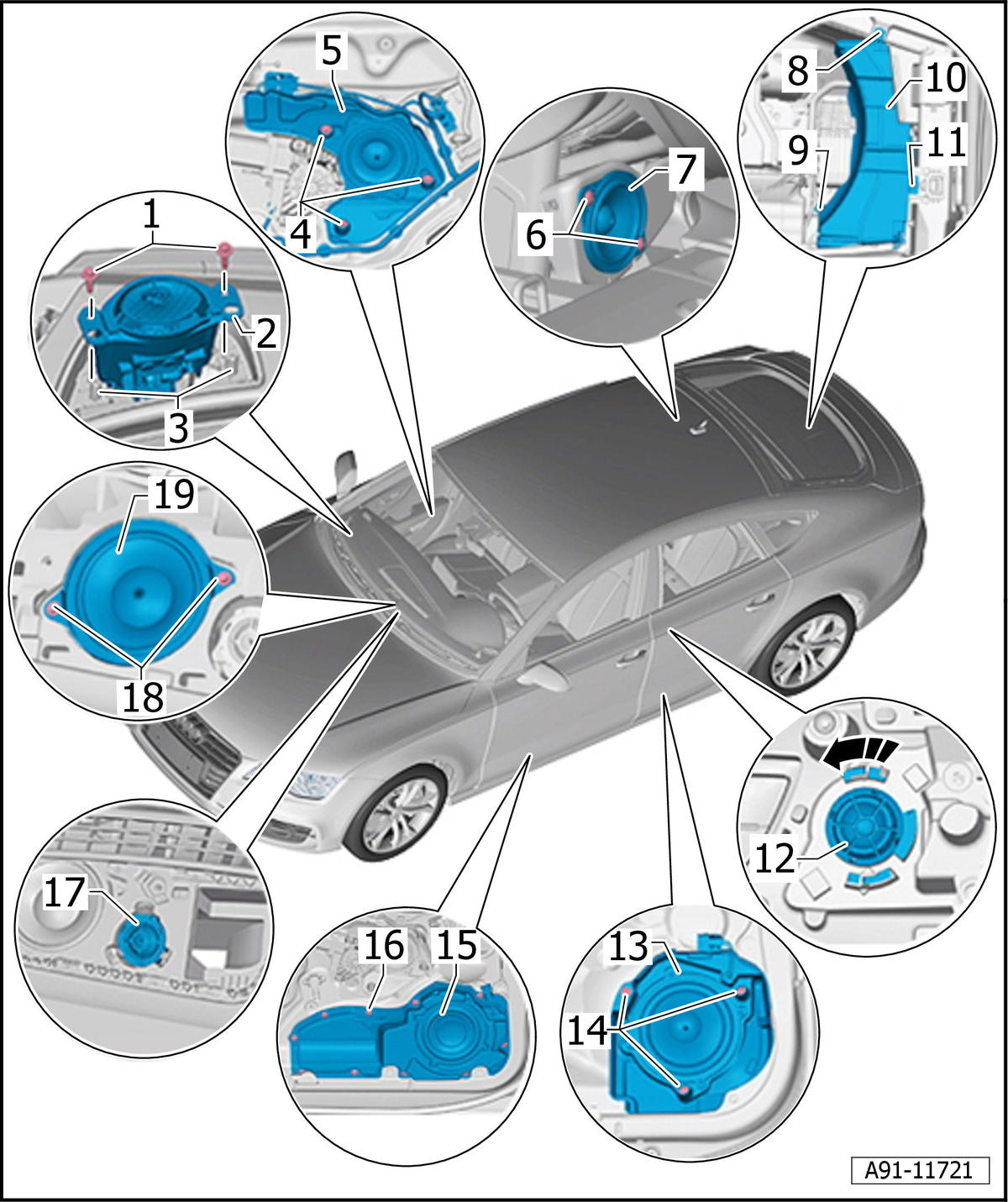

Fig 1: Component Location Overview Of Sound System, Speaker, Bang & Olufsen

Courtesy of AUDI OF AMERICA, LLC

Screw
- 2 Nm
- Quantity: 2
Left Front Treble Speaker - R20- / Right Front Treble Speaker - R22-
- With Left Front Treble Speaker Motor - V344- / Right Front Treble Speaker Motor - V345-
- Removing and installing. Refer to FRONT TREBLE SPEAKER -R20- / -V344- / -R22- / -V345-, BANG & OLUFSEN .
Centering Pin
Screw
- Quantity: 3
- 3 Nm
Left Front Midrange Speaker - R103- / Right Front Midrange Speaker - R104-
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER - R103- / - R104-, REMOVING AND INSTALLING, BANG & OLUFSEN .
Screw
- 2 Nm
- Quantity: 2
Left Effects Speaker - R209- / Right Effects Speaker - R210-
- Removing and installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
Screw
- 5 Nm
Nut
- 5 Nm
Subwoofer - R211-
- Removing and installing. Refer to Subwoofer - R211-, REMOVING AND INSTALLING .
Screw
- 5 Nm
Left Rear Treble Speaker - R14- / Right Rear Treble Speaker - R16-
- Removing and installing. Refer to LEFT/RIGHT REAR TREBLE SPEAKER - R14- / - R16-, REMOVING AND INSTALLING .
Left Rear Mid-Bass Speaker - R159- / Right Rear Mid-Bass Speaker - R160-
- Removing and installing. Refer to LEFT/RIGHT REAR MID-BASS SPEAKER - R159- / - R160-, REMOVING AND INSTALLING, BANG & OLUFSEN .
  - Left Rear Bass Speaker - R15- / Right Rear Bass Speaker - R17-
- Removing and installing. Refer to LEFT/RIGHT REAR BASS SPEAKER - R15- / - R17-, REMOVING AND INSTALLING .
Screw
- 3 Nm
- Quantity: 3
Left Front Bass Speaker - R21- / Right Front Bass Speaker - R23-
- Removing and installing. Refer to LEFT/RIGHT FRONT BASS SPEAKER - R21- / - R23-, REMOVING AND INSTALLING, BOSE/BANG & OLUFSEN .
Screw
- 3 Nm
- Quantity: 10
Center Speaker 2 - R219-
- Removing and installing. Refer to Center Speaker 2 - R219-, REMOVING AND INSTALLING, BANG & OLUFSEN .
Screw
- 2 Nm
- Quantity: 2
Center Speaker - R208-
- Removing and installing. Refer to Center Speaker - R208-, REMOVING AND INSTALLING .
