Effects Speaker, Removing And Installing
WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The Left Effects Speaker - R209- / Right Effects Speaker - R210- are located in the left and right D-pillars.
Removing and installing is identical.
Removing
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the D-pillar trim panel. Refer to OVERVIEW - D-PILLAR TRIM PANEL .
-- Release and disconnect the connector from the Left Effects Speaker - R209-.

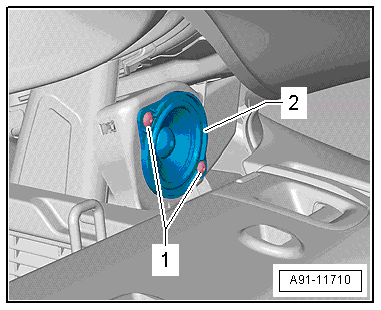

-- Remove the screws - 1- from the Left Effects Speaker - R209- - 2-.
-- Remove the Left Effects Speaker - R209- - 2- from the D-pillar.
Installing
-- Install in reverse order of removal.
Tightening Specifications
