Left And Right Front Midrange Speaker - R103- / - R104-, Removing And Installing, Bang & OLUFSEN

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The Left Front Midrange Speaker - R103- / Right Front Midrange Speaker - R104- - 1- are located in the center of the front doors.

Fig 1: Identifying Left/Right Front Midrange Speaker -R103- / -R104-

Courtesy of AUDI OF AMERICA, LLC

Removing and installing is identical.

Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANELS .

-- Release and disconnect the connector - 1- from the Left Front Midrange Speaker - R103- - 2-.

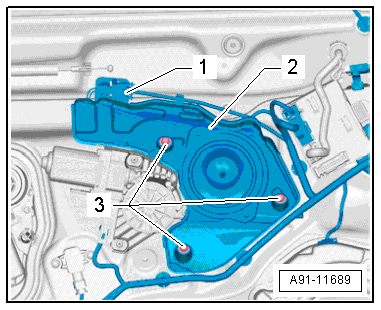

Fig 2: Releasing And Disconnecting Connector - 1- From Left Front Midrange Speaker - R103- - 2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws - 3-.

-- Remove the Left Front Midrange Speaker - R103- - 2-.

Installing

-- Install in reverse order of removal.

Tightening Specifications

COMPONENT LOCATION OVERVIEW - SOUND SYSTEM, SPEAKER, BANG & OLUFSEN
