Overview - Crankshaft: Notes
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Assembly Work, Secure The Engine On The Engine And Gearbox Bracket VAS6095A :VAS6095A . Refer to ENGINE, SECURING ON ENGINE AND TRANSMISSION HOLDER .
- Sealing Flange, Belt Pulley Side
- Replacing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .
- Bolt
- Tightening Specification And Sequence. Refer to SEALING FLANGE, BELT PULLEY SIDE TIGHTENING SPECIFICATIONS .
- Crankshaft
- Axial play, measuring. Refer to CRANKSHAFT, MEASURING AXIAL PLAY .
- Radial play, measuring. Refer to CRANKSHAFT, MEASURING RADIAL CLEARANCE .
- Crankshaft Dimensions. Refer to CRANKSHAFT DIMENSIONS .
- Alignment Sleeve
- Quantity: 4

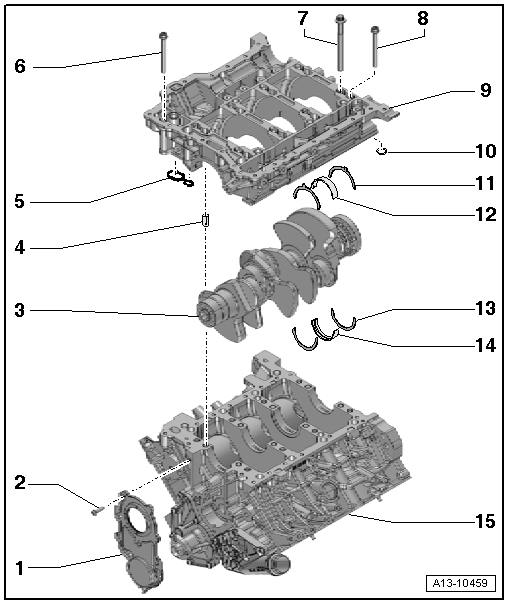

- Insert into guide frame. Refer to the image above (Exploded View Of Crankshaft).
- Seal
- Replace after removing
- Bolt
- For guide frame to cylinder block sealing surfaces
- There are different bolt lengths and bolt heads
- Tightening Specification And Sequence GUIDE FRAME BOLTS TIGHTENING SEQUENCE .
- Bolt
- Long, large shoulder
- For inner row of guide frame
- Replace after removing
- Use old bolts to measure radial play.
- Tightening Specification And Sequence. Refer to GUIDE FRAME BOLTS TIGHTENING SEQUENCE .
- Bolt
- Short, small shoulder
- For outer row of guide frame
- Tightening Specification And Sequence. Refer to GUIDE FRAME BOLTS TIGHTENING SEQUENCE .
- Guide Frame
- With Oil Pressure Regulation Valve - N428-. Refer to GUIDE FRAME BOLTS TIGHTENING SEQUENCE
- To remove, Remove The Timing Chain Guide Rail -Item 1) OVERVIEW - TIMING MECHANISM DRIVE CHAIN .
- Sealant application. Refer to SEALANT APPLICATION FOR THE GUIDE FRAME, POSITION OF THE ALIGNMENT BUSHINGS
- Oil Pressure Regulation Valve -N428-, Removing and installing. Refer to OIL PRESSURE REGULATION VALVE -N428-, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- Thrust Washer
- Crankshaft bearing 3 only
- Installed position: the oil groove faces outside
- Note locating point in guide frame
- Bearing Shell
- For guide frame without lubricating groove
- Replace any worn bearing shells
- Note the installation position
- Insert new Bearing Shells For Guide Frame with proper color marking. Refer to COLOR CODED CRANKSHAFT BEARING SHELLS FOR GUIDE FRAME
- Thrust Washer
- Crankshaft bearing 3 only
- Installed position: the oil groove faces outside
- Pay attention to the locating point on the cylinder block
- Bearing Shell
- For cylinder block with oil groove
- Replace any worn bearing shells
- Note the installation position
- Insert new Bearing Shells For Cylinder Block with proper color marking. Refer to COLOR CODE OF CRANKSHAFT BEARING SHELLS FOR CYLINDER BLOCK
- Cylinder Block
NOTE:
Replace The O-Ring After Removing.
-- Tighten the locking bolt -arrow- to 14 Nm.
- Connector
- Replace the O-ring after removing
- Bolt, 9 Nm
- Oil Pressure Regulation Valve -N428-
