Sealant Application For The Guide Frame, Position Of The Alignment Bushings
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Clean any oil or grease off the sealing surfaces.

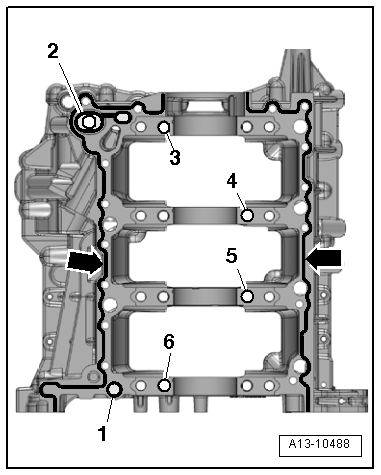

-- Apply sealant beads -arrows- to the clean sealing surfaces on the guide frame as shown in the illustration.
- The groove of sealing surface must be completely filled with sealant.
- The sealant beads must be 1.5 to 2.0 mm above the sealing surface.
-- Position seals -1 and 2-.
-- Check if alignment bushings -3 through 6- are inserted at the locations in the guide frame as shown in the illustration.
