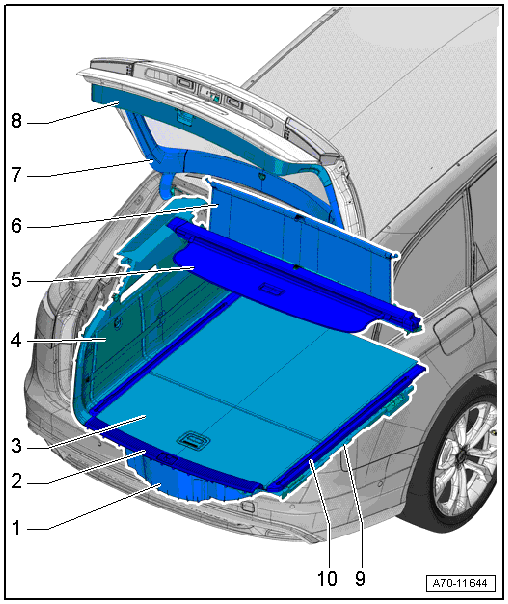

Component Location Overview - Luggage Compartment Trim Panel, AVANT
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Spare Wheel Well Replacement Part
- Equipment levels
- Rear Lid End Trim Panel
- Overview. Refer to OVERVIEW - LOCK CARRIER TRIM PANEL, AVANT .
- Luggage Compartment Floor Covering
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR, AVANT .
- Luggage Compartment Side Trim Panel
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, AVANT .
- Luggage Compartment Cover
- Luggage compartment cover motor assembly overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT ROLL COVER .
- Screen Separator Wall
- Overview. Refer to OVERVIEW - SCREEN SEPARATOR .
- Rear Lid Upper Trim
- Overview. Refer to OVERVIEW - REAR LID TRIM PANEL, AVANT .
- Rear Lid Lower Trim
Vehicles with:
- Without sun shade
- With sun shade
- Overview. Refer to OVERVIEW - REAR LID TRIM PANEL, AVANT .
- Luggage Compartment Floor Trim Panel
- Removing and installing. Refer to SPARE WHEEL WELL TRIM, REMOVING AND INSTALLING, AVANT .
- Retaining Tracks
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR, AVANT .
