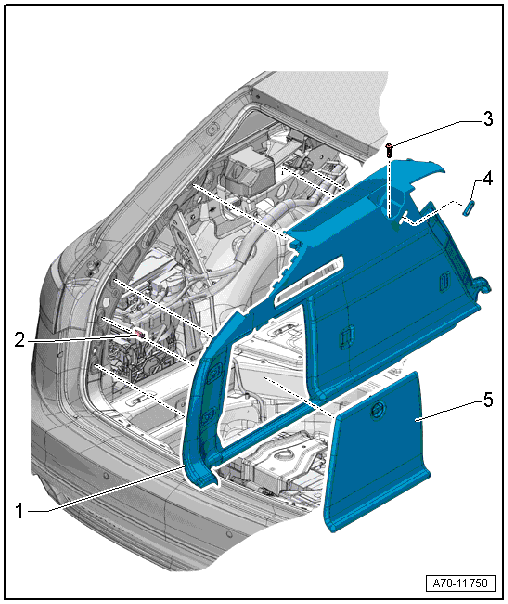

Overview - Luggage Compartment Side Trim Panel, AVANT
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Luggage Compartment Side Trim Panel
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, AVANT .
- Press on until it engages audibly
- Stretch the lip of the rear lid seal over
- Clip
- Quantity: 3
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
- Bolt
- 3.5 Nm
- Rubber Grommet
- For the screen separator bracket
- Slide over the bracket and insert into the trim panel
- Cap
- For the luggage compartment side trim
