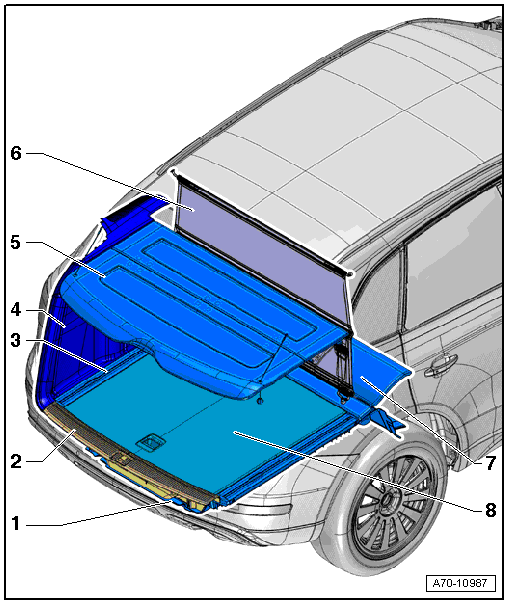

Component Location Overview - Luggage Compartment Trim Panels
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Spare Wheel Well Trim
- Overview. Refer to LUGGAGE COMPARTMENT TRIM PANEL AND BATTERY RECESS COVER, ASSEMBLY OVERVIEW .
- Removing and installing. Refer to SPARE WHEEL WELL TRIM, REMOVING AND INSTALLING .
- Rear Lid End Trim Panel
- Overview. Refer to OVERVIEW - LOCK CARRIER TRIM .
- Removing and installing. Refer to LOCK CARRIER TRIM, REMOVING AND INSTALLING, NON-HYBRID VEHICLES .
- Gap Cover or Retaining Track
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
- Gap cover, removing and installing. Refer to GAP COVER, REMOVING AND INSTALLING, VEHICLES WITHOUT A RETAINING TRACK
- Retaining tracks, removing and installing. Refer to RAIL, REMOVING AND INSTALLING
- Luggage Compartment Side Trim
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL .
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Luggage Compartment Cover
- Different versions, allocate correct components.
- Overview. Refer to LUGGAGE COMPARTMENT COVER, ASSEMBLY OVERVIEW .
- Screen Separator Wall
- Overview. Refer to OVERVIEW - SCREEN SEPARATOR .
- Front Luggage Compartment Floor
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
- Removing and installing. Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING .
- Rear Luggage Compartment Floor
