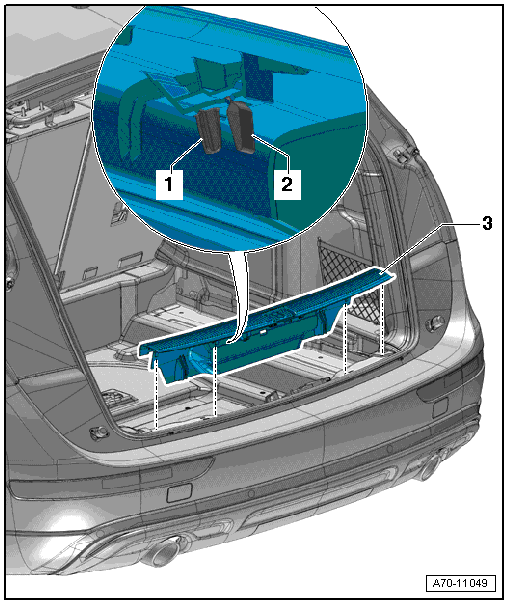

Overview - Lock Carrier Trim
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Centering Pins
- Bracket
- Quantity: 4
- Insert in the trim panel
- Replace if damaged or deformed
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool T40280.
- Rear Lid End Trim Panel
- With Rear Lid -Closed- Sensor 1 -G525- and Rear Lid -Closed- Sensor 2 -G526-
- Removing and installing. Refer to LOCK CARRIER TRIM, REMOVING AND INSTALLING, NON-HYBRID VEHICLES .
