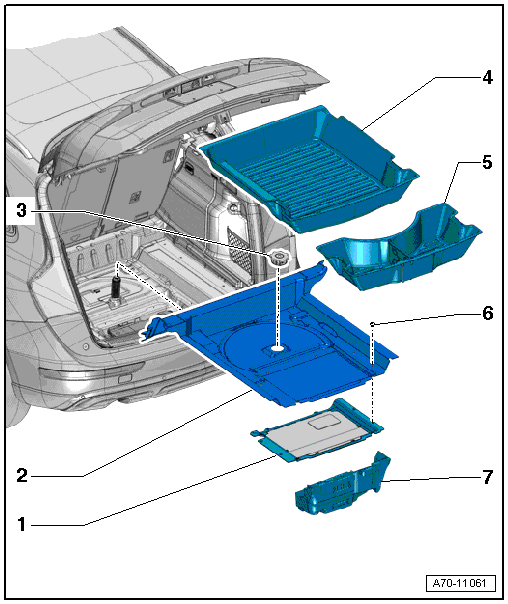

Luggage Compartment Trim Panel And Battery Recess Cover, Assembly Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Battery Recess Cover
- Removing and installing. Refer to BATTERY RECESS COVER, REMOVING AND INSTALLING .
- Trim Panel
- For the spare wheel well
- Removing and installing. Refer to SPARE WHEEL WELL TRIM, REMOVING AND INSTALLING .
- Nut
- for spare wheel mounting
- when tightening, it must audibly click into place, otherwise, turn some more
- Large Dirt Shield
- Equipment levels
- Small Dirt Shield
- Equipment levels
- Clip
- Tool Box
