Front Seat, Removing And Installing, Power: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

-- Move the seat into its service position. Refer to FRONT SEAT, MOVING INTO SERVICE POSITION .

-- Remove the front bolts -1- (quantity 2) from the console -4-.

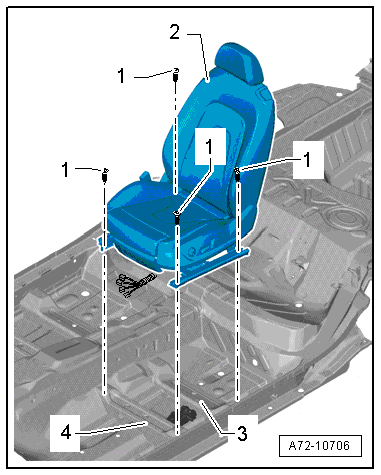

Fig 1: Identifying Front Bolt To Console

Courtesy of AUDI OF AMERICA, LLC

-- Operate seat forward/back adjuster and move the seat -2- as far forward as possible.

-- Remove the rear bolts -1- (quantity 2) from the bracket -3-.

-- Turn on the ignition.

-- Disconnect the battery ground cable with the ignition turned on. Refer to Disconnecting .

WARNING:

Before handling airbag components (for example, disconnecting the electrical connector), the relevant person must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connectors at the connector station in the floor panel. Refer to CONNECTORS, DISCONNECTING AND CONNECTING .

-- Connect the Airbag Lockout AdapterVAS6281. Refer to AIRBAG ADAPTER, CONNECTING AND DISCONNECTING .

-- Lift the front seat with a second technician and remove it from the vehicle.
