Battery, Disconnecting And Connecting: Disconnecting

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and remove the key.

Sedan:

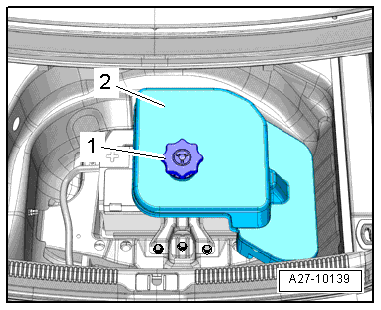

Fig 1: Locating Vehicle Tool Kit And Battery

GWWA27-10139

Courtesy of AUDI OF AMERICA, LLC

-- Lift the luggage compartment floor covering by the handle and hang the handle on the rear lid seal.

-- Remove the nut -1- and remove the cover -2- for the vehicle tool kit.

Avant:

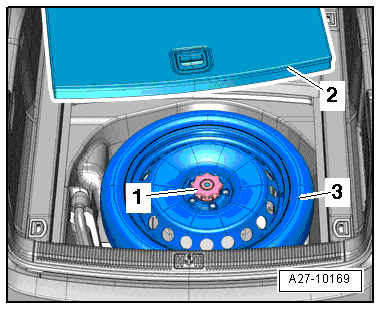

Fig 2: Identifying Luggage Compartment Floor -2-, Nuts -1- And Spare Tire -3-

GWWA27-10169

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment floor -2-.

-- Remove the nut -1- and if equipped, remove the spare wheel -3-.

Negative terminal cover - version I:

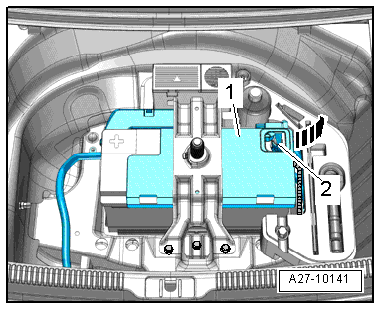

Fig 3: Identifying Battery Cover And Ground Cable

GWWA27-10141

Courtesy of AUDI OF AMERICA, LLC

-- Pull the cover -1- over the negative terminal up slightly -arrow-.

-- Loosen the nut several turns and remove the ground cable -2- from the battery terminal.

Negative terminal cover - version II:

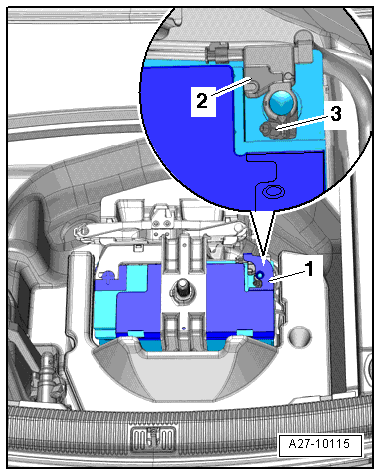

Fig 4: Identifying Negative Terminal Cover

GWWA27-10115

Courtesy of AUDI OF AMERICA, LLC

-- Open the cover -1- over the battery negative terminal.

-- Loosen the nut -3- several turns and remove the battery ground cable terminal -2- from the battery terminal.
