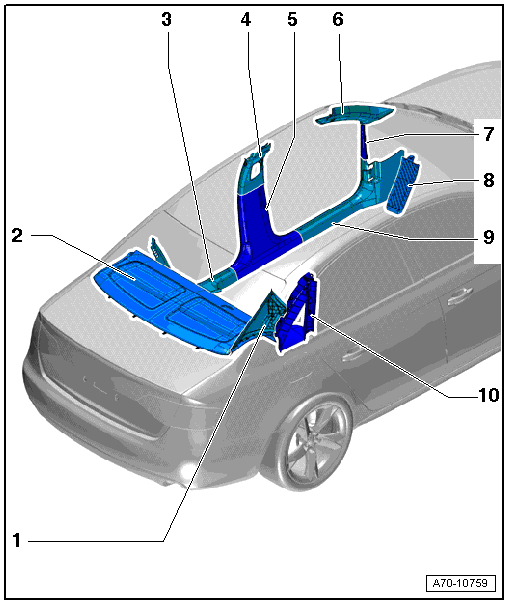

Component Location Overview - Passenger Compartment Trim (Sedan)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- D-Pillar Trim Panel
- Overview. Refer to D-PILLAR TRIM ASSEMBLY OVERVIEW (SEDAN) .
- Rear Shelf
- Versions without Sun Shade, Assembly Overview OVERVIEW - REAR SHELF
- Rear Sill Panel Strip
- Overview. Refer to OVERVIEW - SILL PANEL STRIP, REAR SILL PANEL STRIP .
- Upper B-Pillar Trim Panel
- Overview. Refer to OVERVIEW - B-PILLAR TRIM PANEL .
- Lower B-Pillar Trim Panel
- Overview. Refer to OVERVIEW - B-PILLAR TRIM PANEL .
- Upper A-Pillar Trim Panel
- Overview. Refer to OVERVIEW - A-PILLAR TRIM PANEL .
- A-Pillar Gap Cover
- Removing and installing. Refer to A-PILLAR GAP COVER, REMOVING AND INSTALLING .
- Foot Rest/Carpet
- Overview. Refer to OVERVIEW - FOOT REST AND CARPET .
- Front Sill Panel Strip
- Overview. Refer to OVERVIEW - SILL PANEL STRIP, FRONT SILL PANEL STRIP .
- C-Pillar Trim Panel
- Overview. Refer to OVERVIEW - C-PILLAR TRIM PANEL (SEDAN) .
